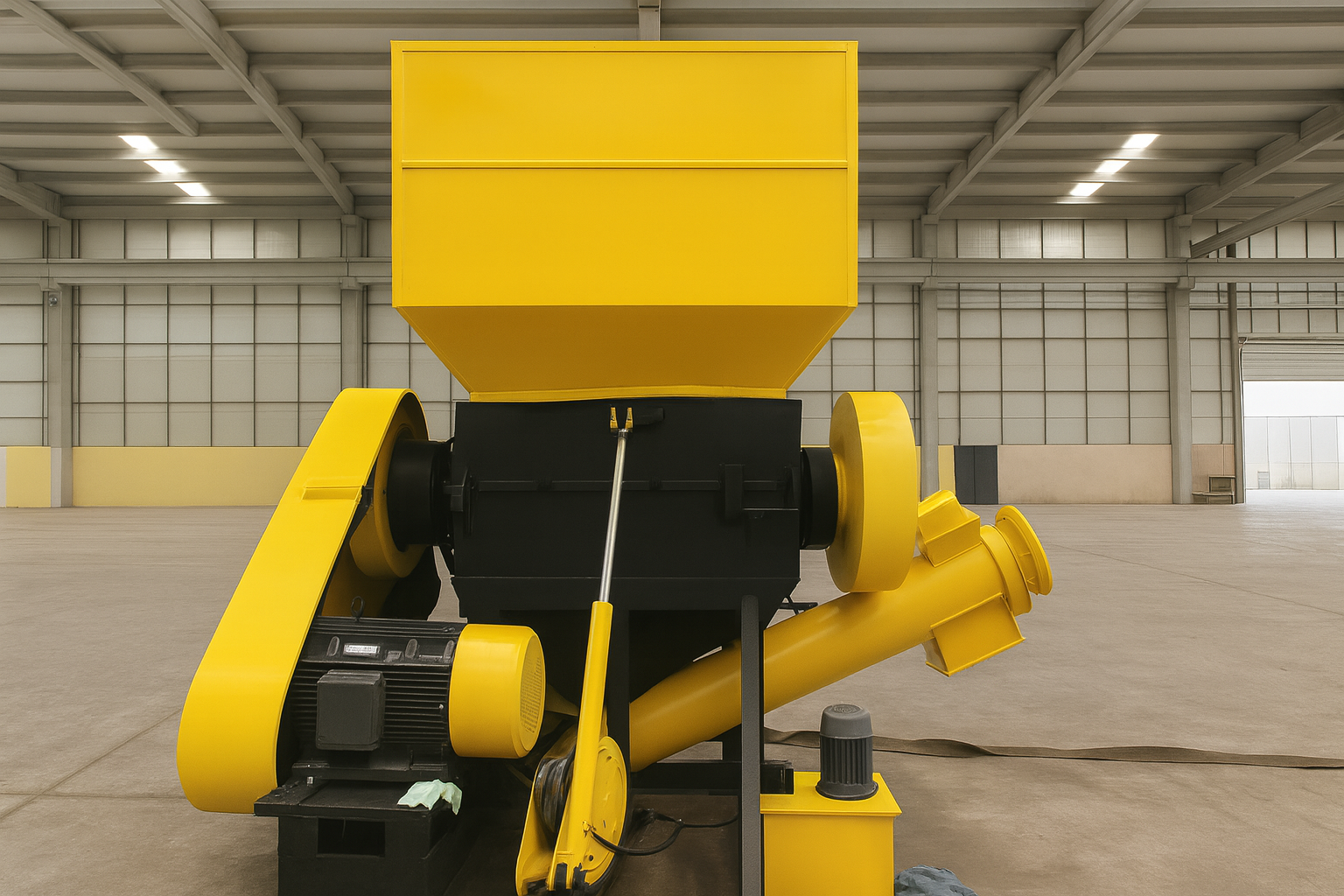

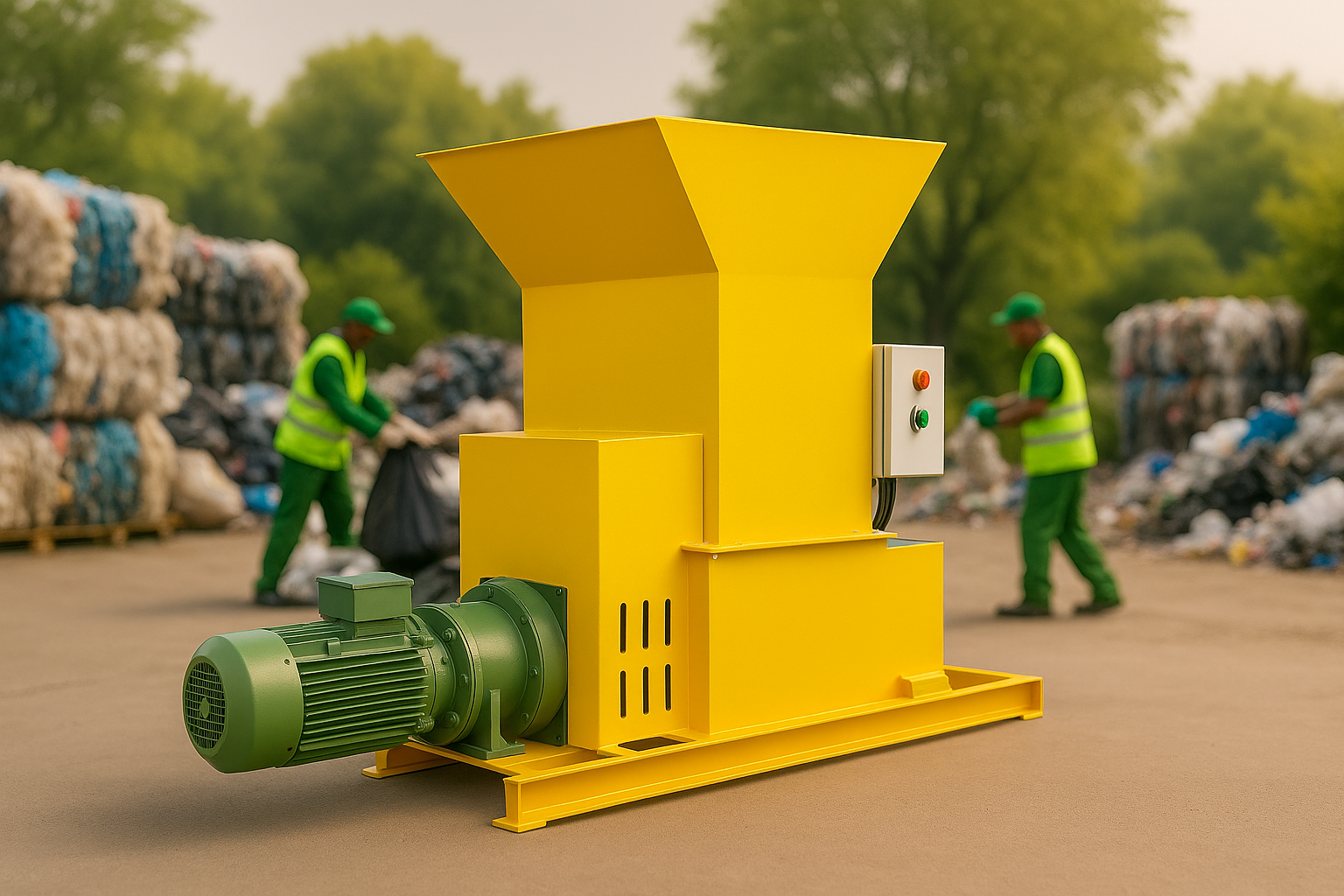

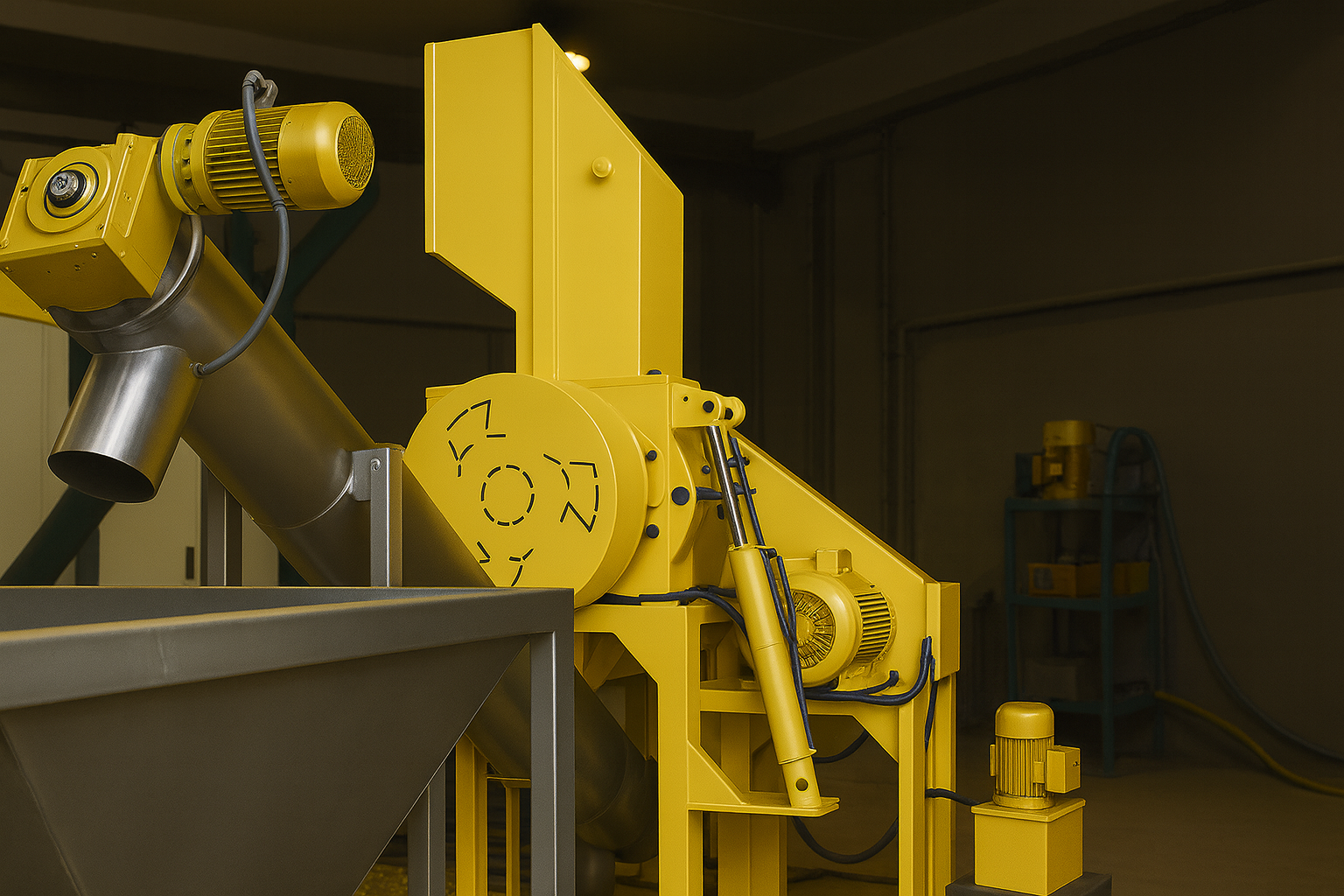

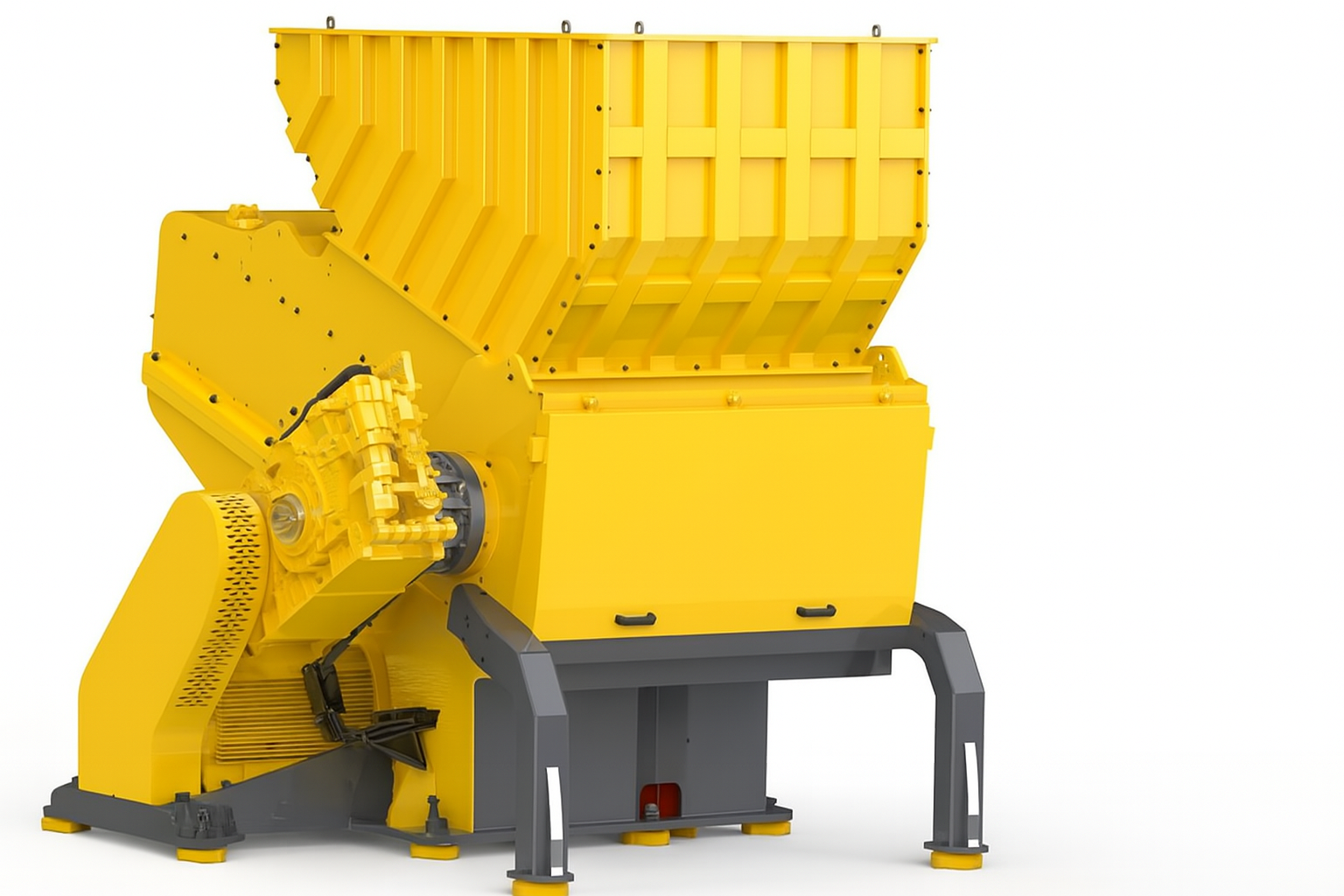

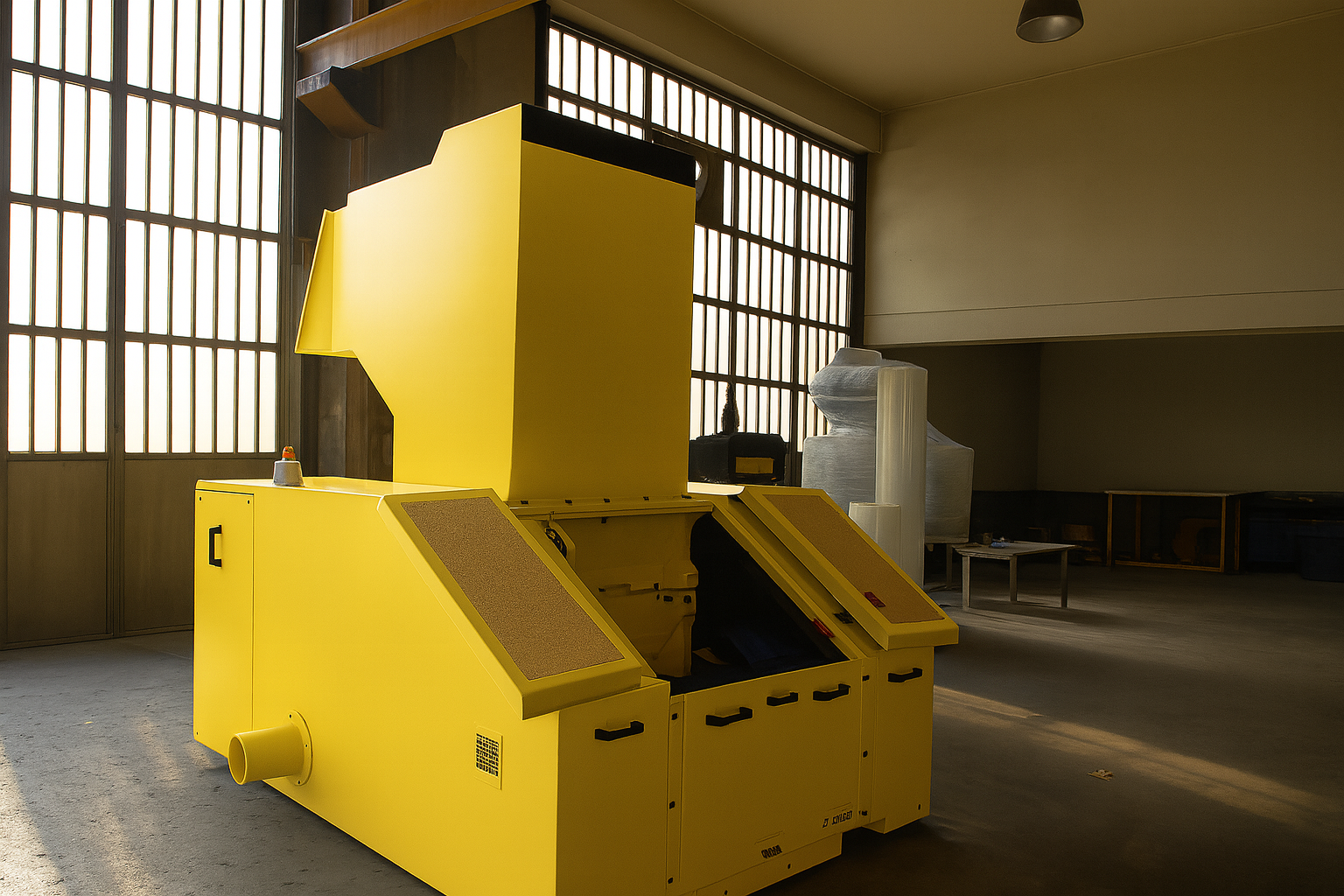

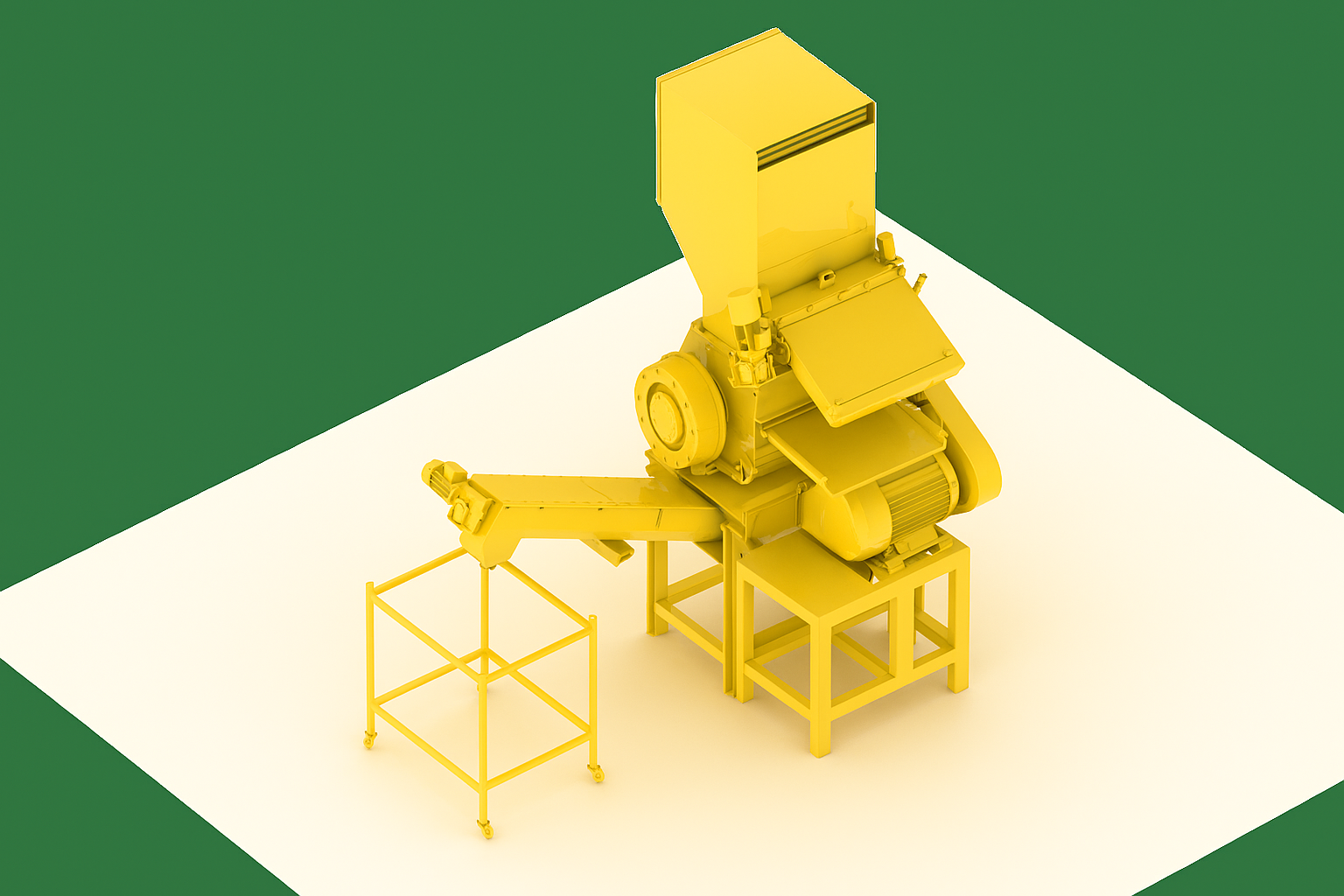

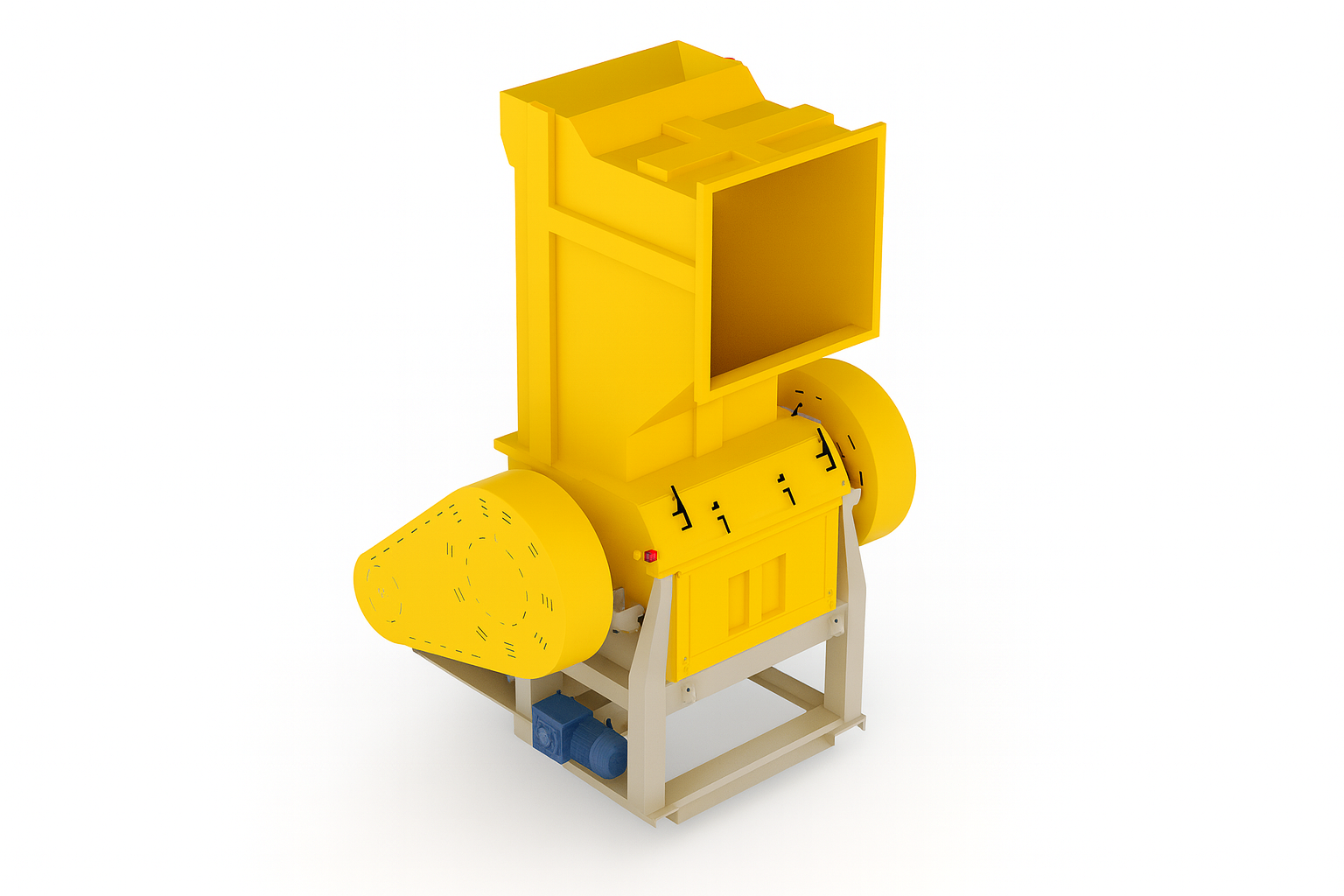

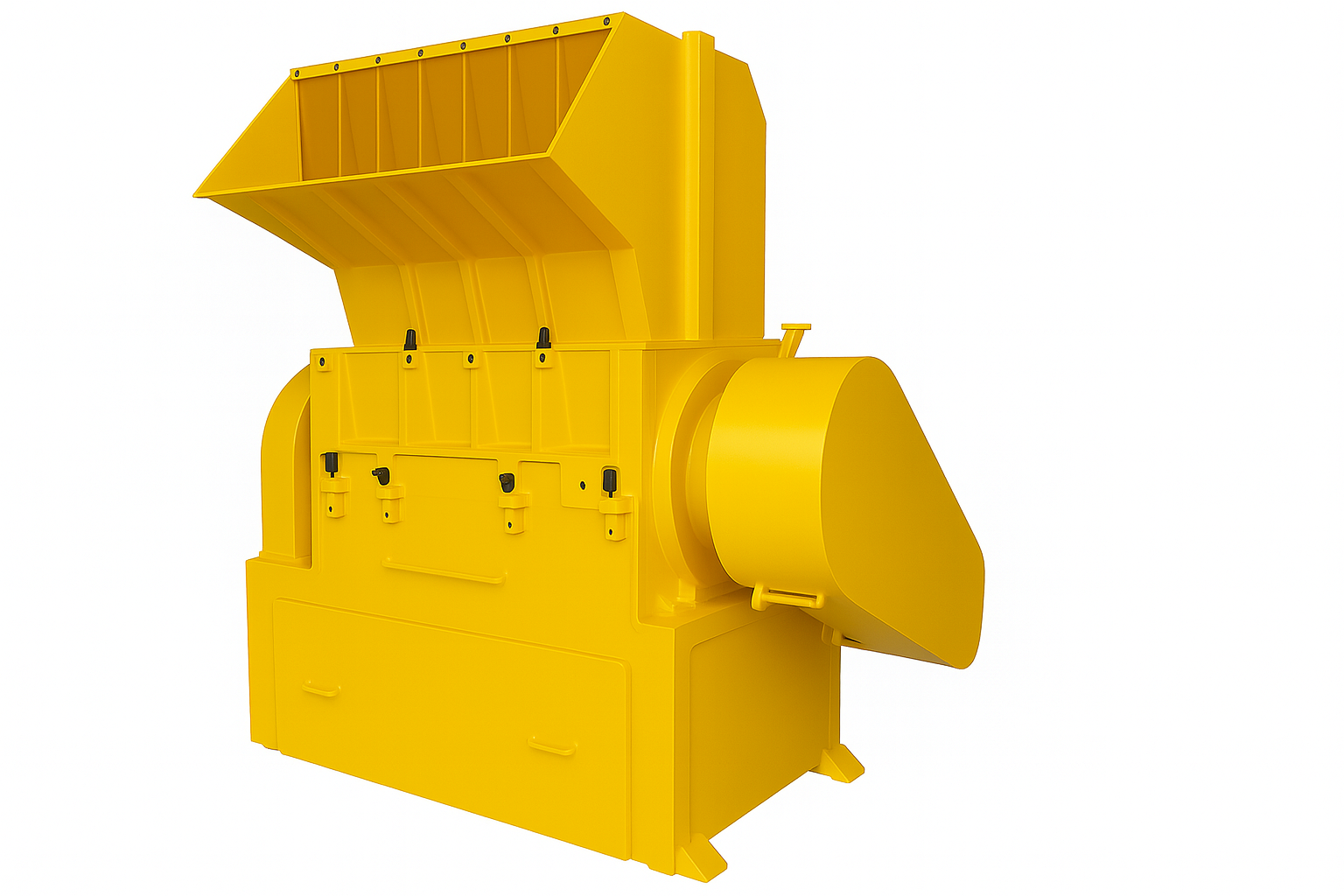

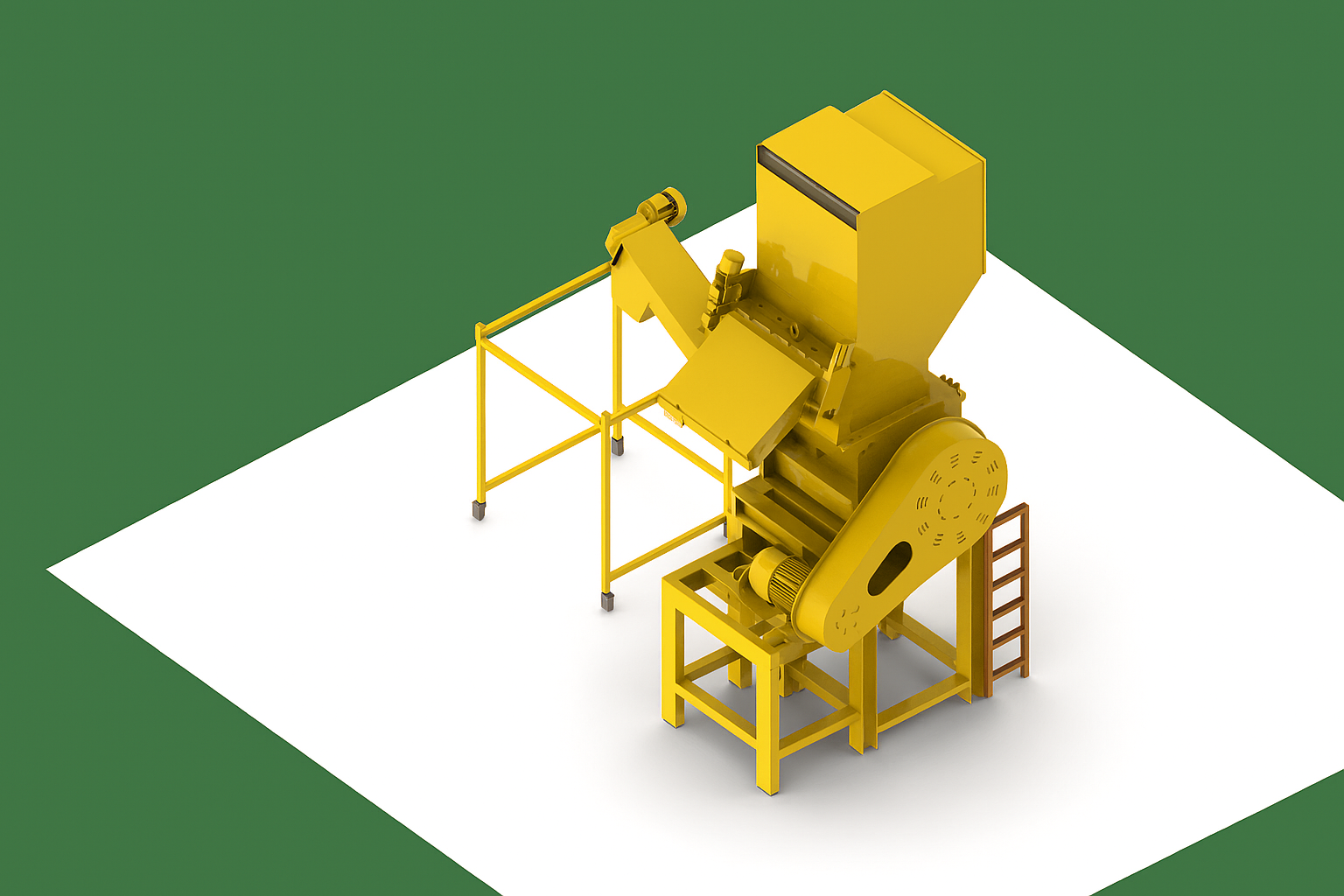

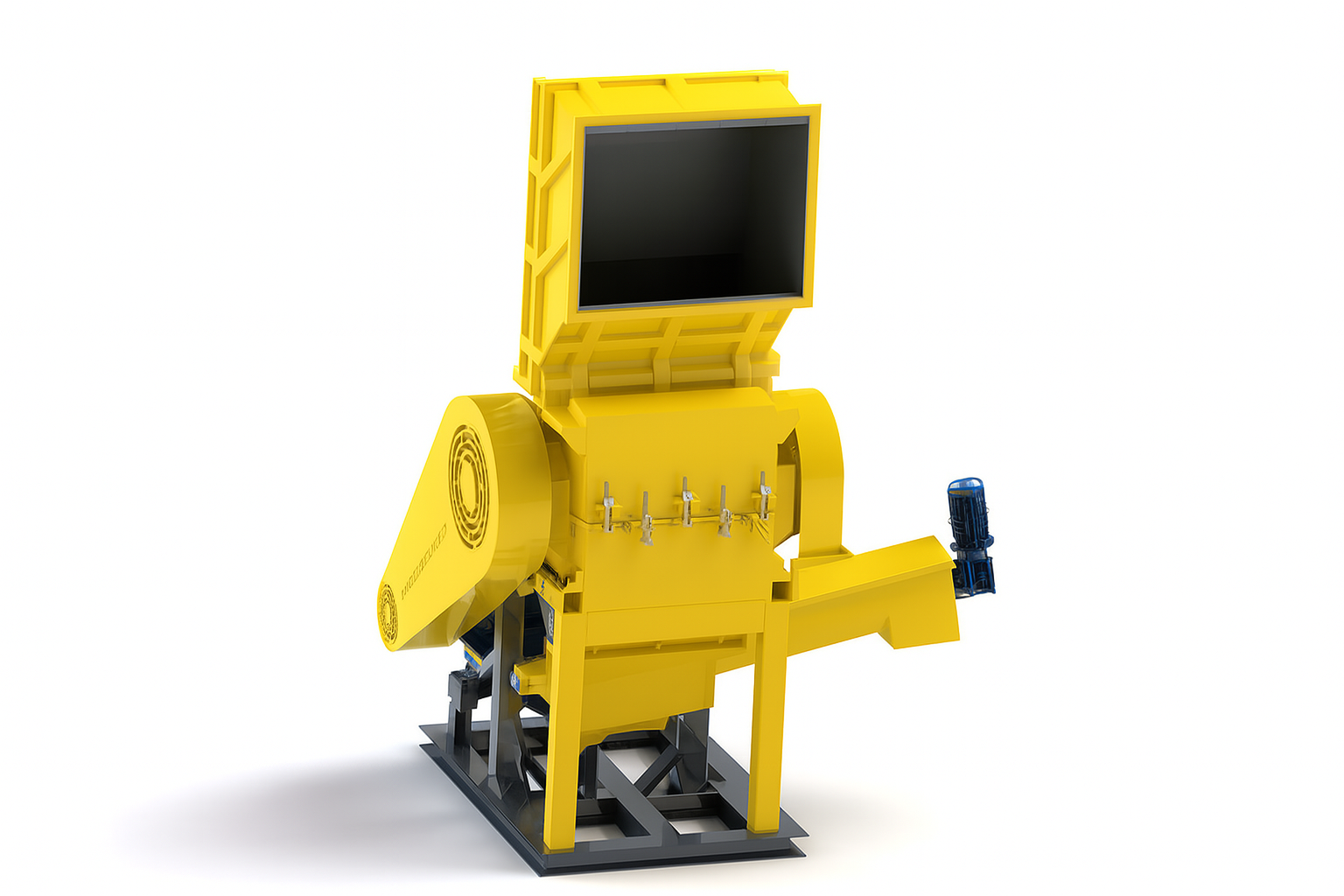

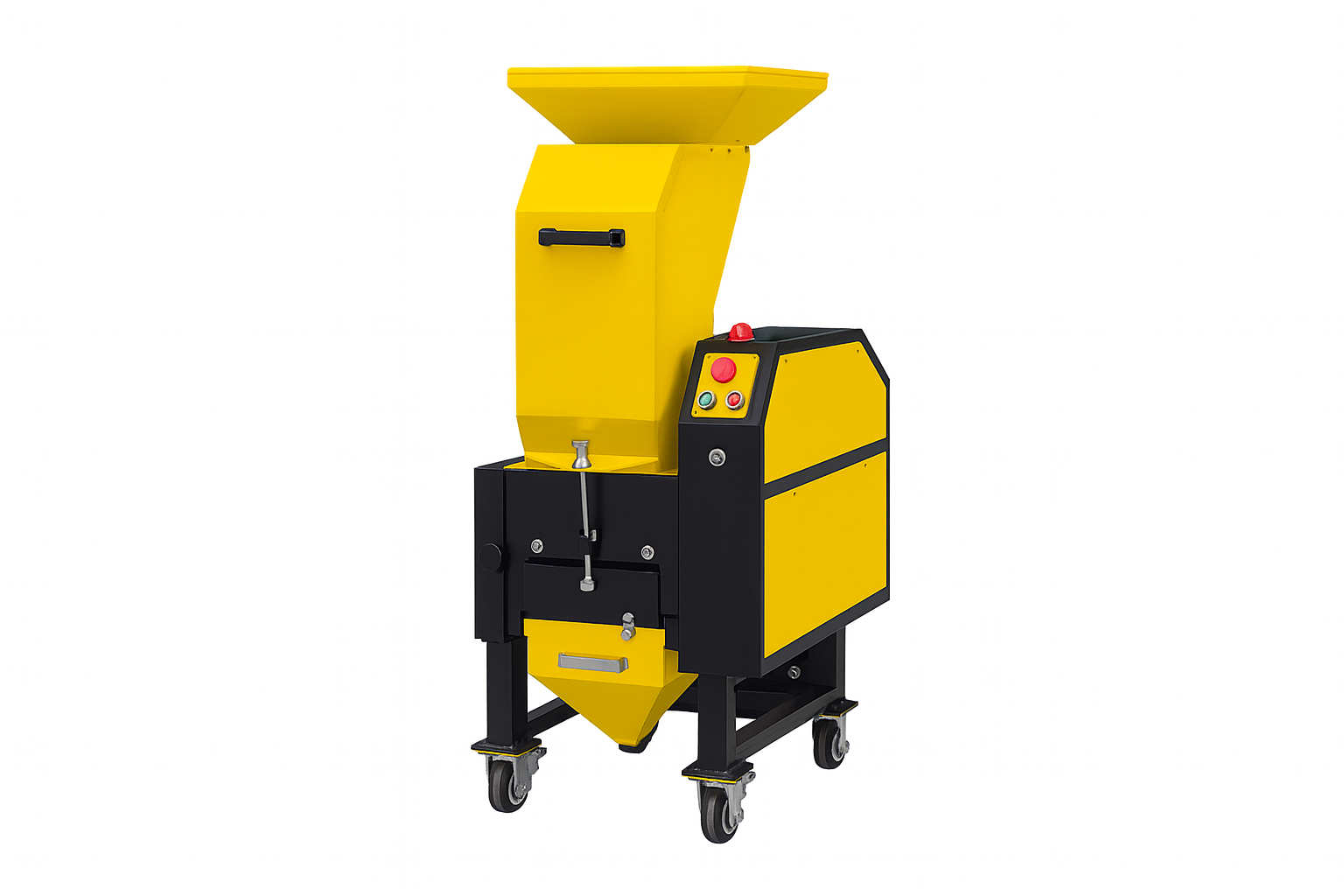

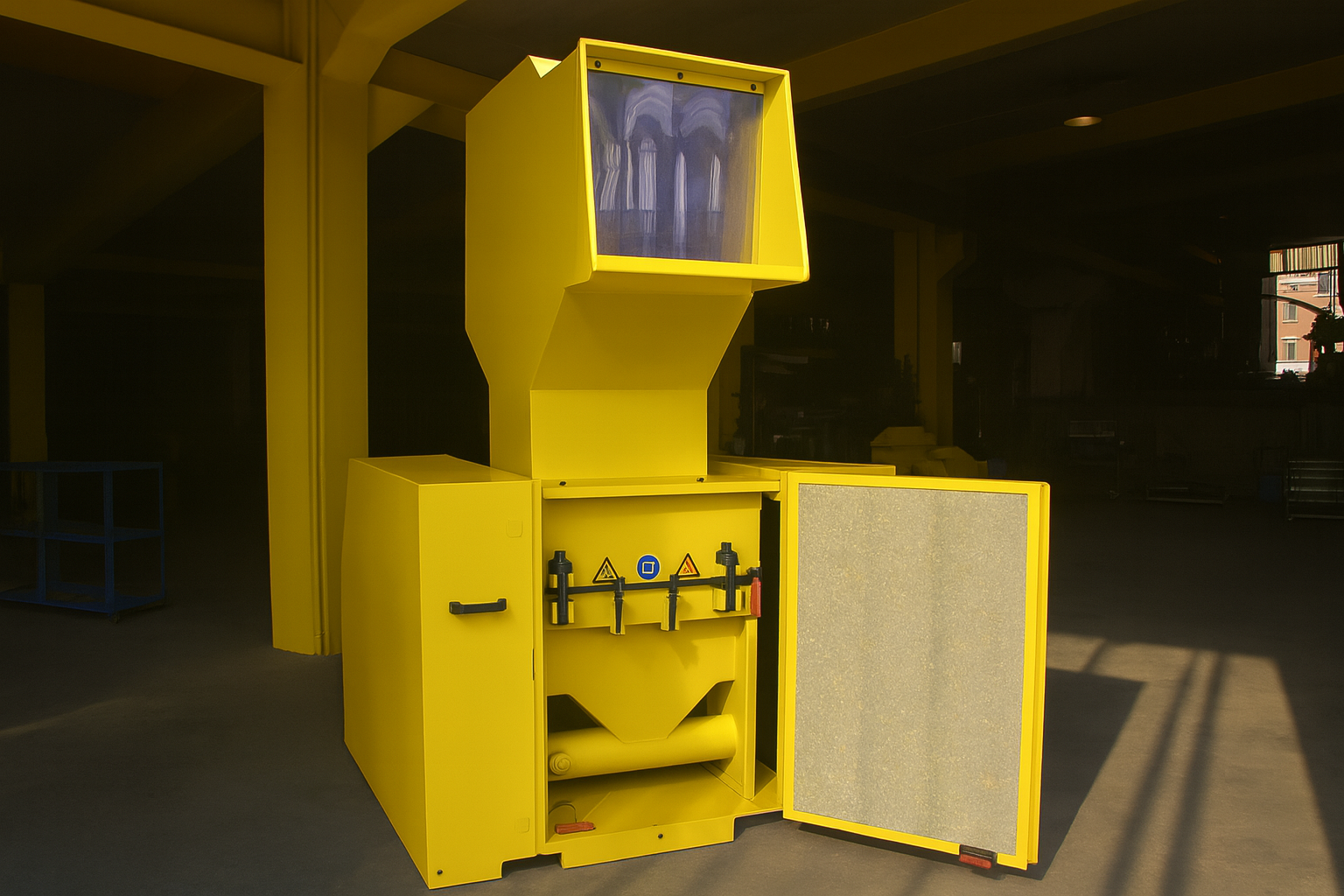

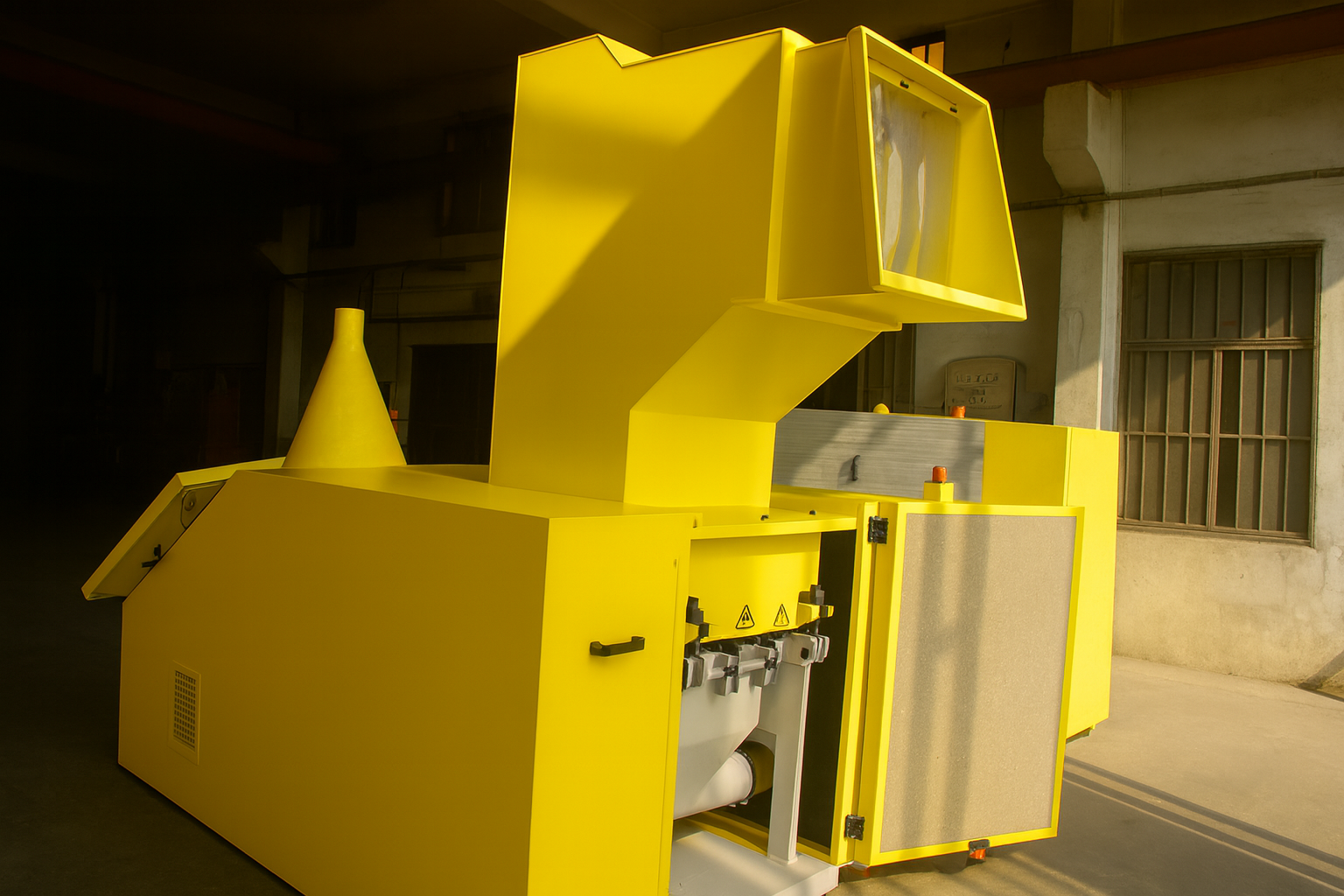

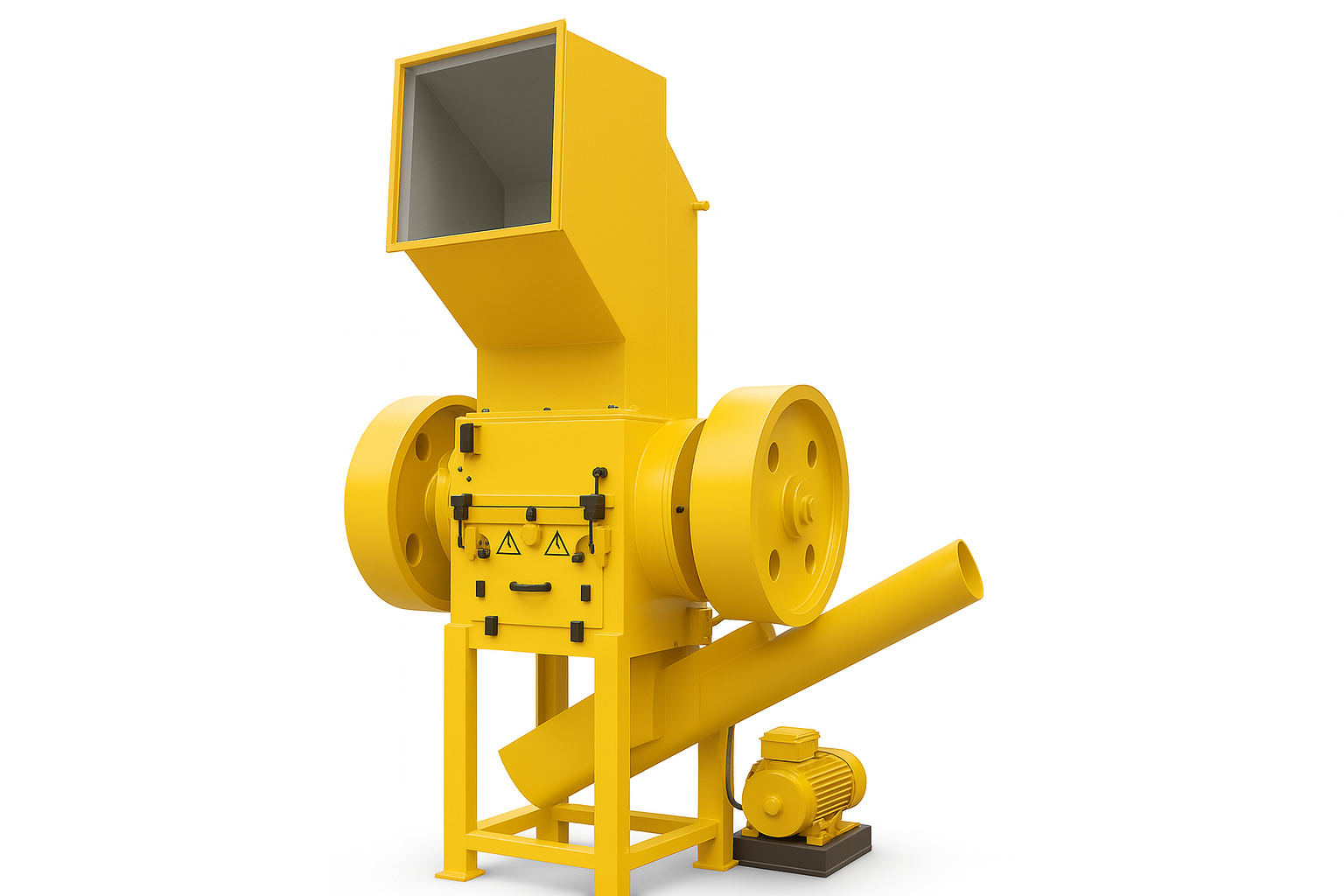

Ultra Hard Plastic Shredder Machine – ıp65100

This system uses centrifugal force to prevent material flow, resulting in smooth crushing, simplified blade alignment, and continuous operation.

  • ıp65100
  • Capacity: 1,200 – 1,500 kg/h
  • Rotor Diameter: 650 mm
  • Rotor Length: 1,000 mm
  • Rotor Speed: 520 rpm
  • Number of Rotor Blades: 10
  • Number of Fixed Blades: 4
  • Motor Power: 90 kW
  • Fan Motor Power: 11 kW

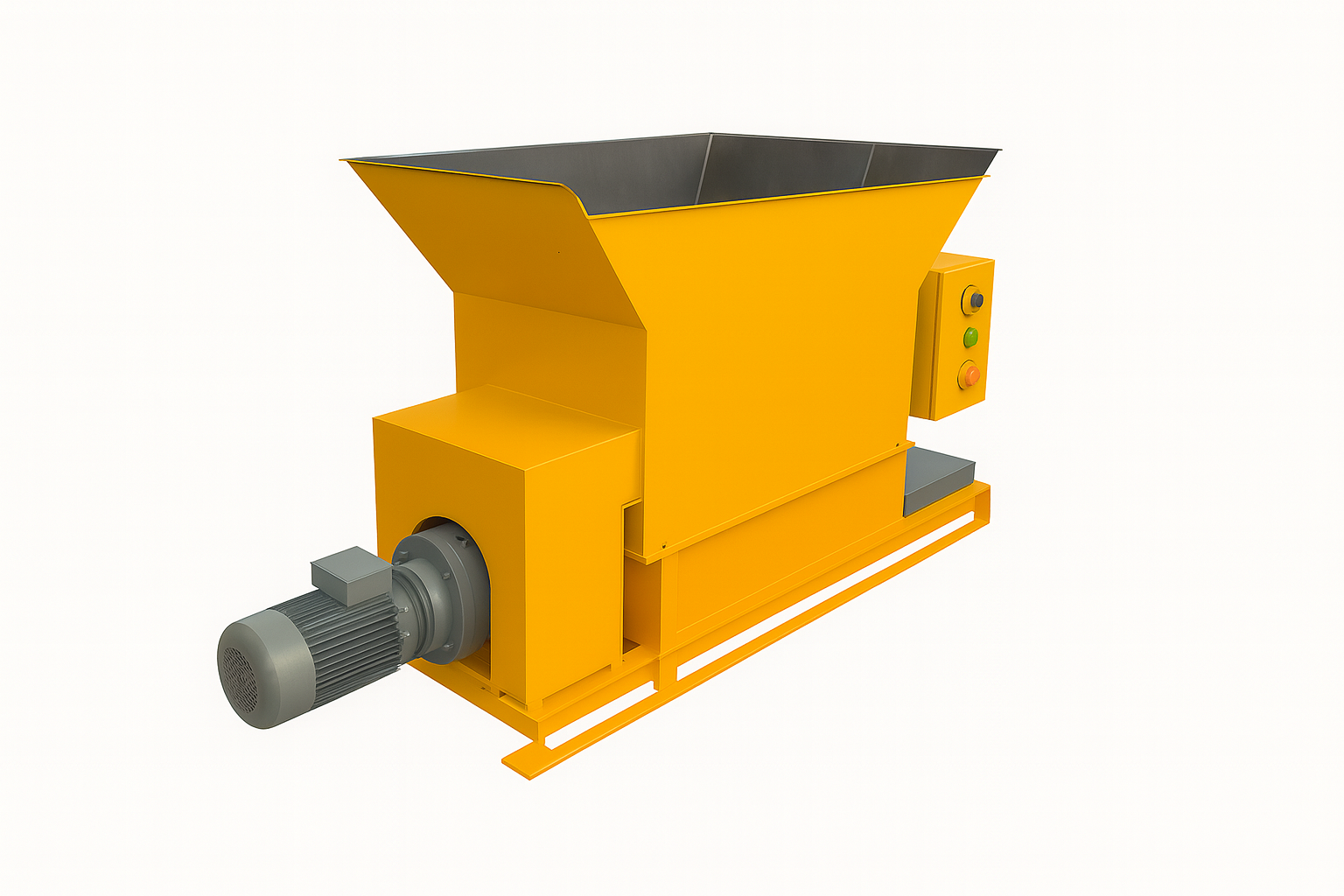

  • Screw Conveyor Motor Power: 3 – 4 kW
  • Hydraulic Unit Motor Power: 1.5 kW
  • Screen Diameter: 12 – 14 mm

Efficient Granulation with Optimized Rotor Flow Channels and Smart Blade Configuration
The innovative flow channel design integrated into the rotor sidewalls prevents crushed materials from accumulating and jamming in critical zones. By utilizing centrifugal force during operation, this system eliminates the need for complex rotor-blade alignment strategies. It also simplifies blade mounting and adjustment, reducing setup time and improving maintenance efficiency.
Equipped with an adjustable rotor and easily accessible stationary blades, the machine allows for precise adjustment of cutting gaps after each grinding cycle. This ensures consistent performance and optimal cutting quality with minimal downtime.
A reversible screen extends the service life of the machine, offering flexibility in granule output sizes while minimizing wear. The machine’s overall design emphasizes low maintenance costs, making it a reliable and cost-effective solution for continuous plastic recycling operations.

APPLICATIONS
Advanced Plastic Granulator for High-Efficiency Inline and Offline Recycling
Engineered with a reinforced rotor and heavy-duty bearing design, this plastic granulator is ideal for reclaiming a wide range of production waste — including pipes, profiles, preforms, bottles, and blow-molded components. It is fully compatible with wet or dry granulation, making it especially suitable for extrusion scrap recovery such as purging lumps and blocks in the recycling industry.

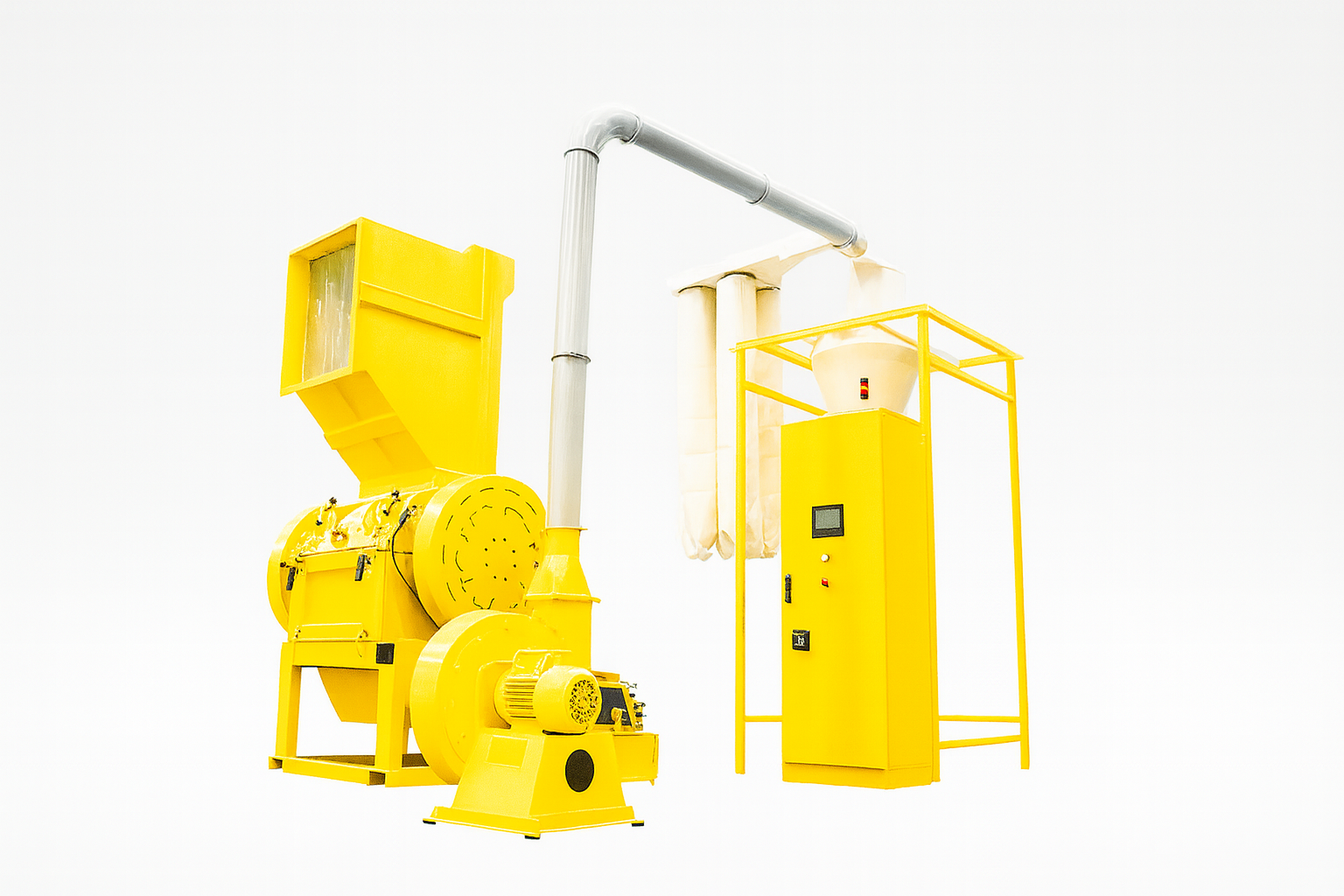

In addition to standard fan and cyclone discharge, the system offers an optional dewatering screw discharge for wet applications. Other configurable features include integrated sound insulation, hydraulic opening and closing of the hopper and upper housing, dust separator, multi-stage rotor blades, and sheet puller systems. These elements support both inline and offline processing.
Thanks to its modular component options such as feeding conveyors, the system can be fully customized to meet specific operational needs — delivering maximum flexibility and cost-effective performance in industrial recycling environments.

Advanced Plastic Granulator – Key Technical Features

  • Anti-Jamming Rotor Flow Channel Technology:
    Integrated flow channels on the rotor sidewalls use centrifugal force to prevent material buildup, ensuring smooth crushing, simplified blade alignment, and uninterrupted operation.
  • Precision Adjustable Cutting System:
    Adjustable rotor and easily accessible stationary blades allow fast and accurate cutting gap calibration after each grinding cycle, maintaining consistent granule quality with minimal downtime.
  • Reversible Screen for Extended Service Life:
    The reversible screen design reduces wear and doubles usable lifespan while providing flexible granule size options for different recycling applications.
  • Modular Configuration for Inline and Offline Recycling:
    Compatible with wet and dry granulation, optional dewatering screw discharge, hydraulic hopper opening, sound insulation, and auxiliary feeding systems enable full customization for industrial recycling lines.
