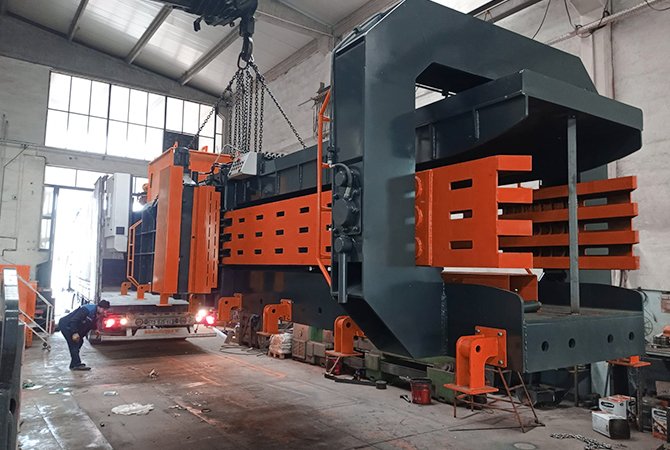

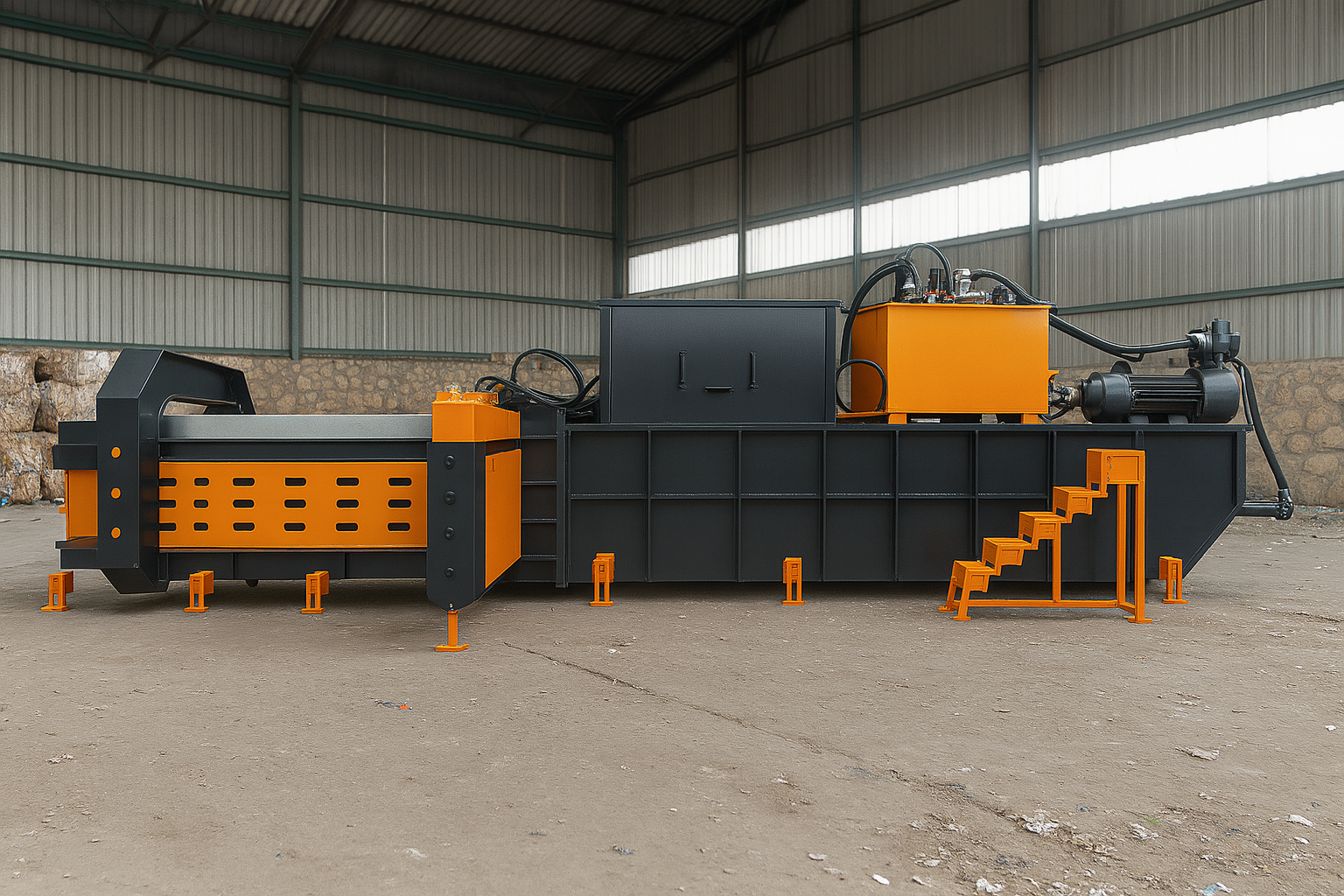

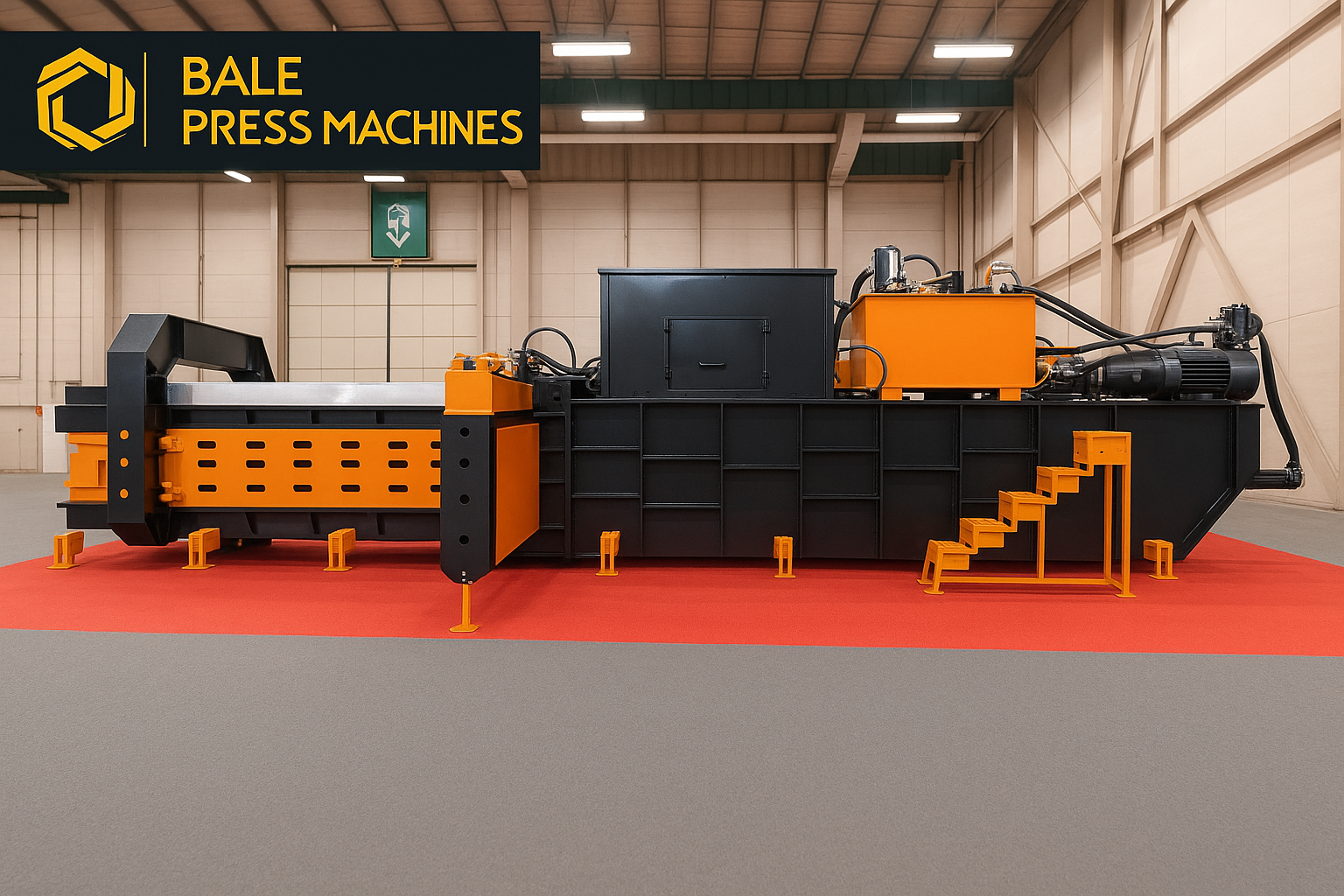

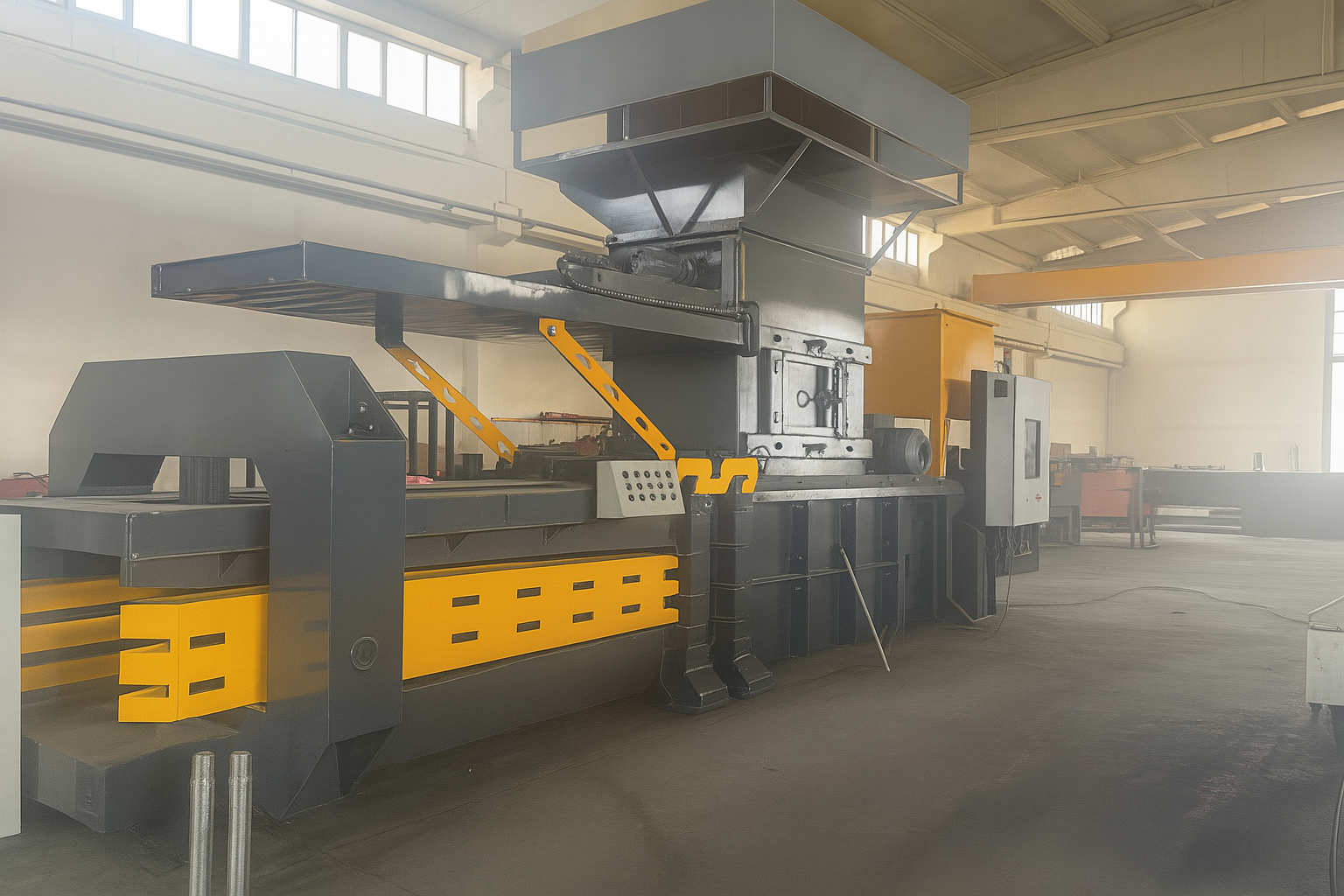

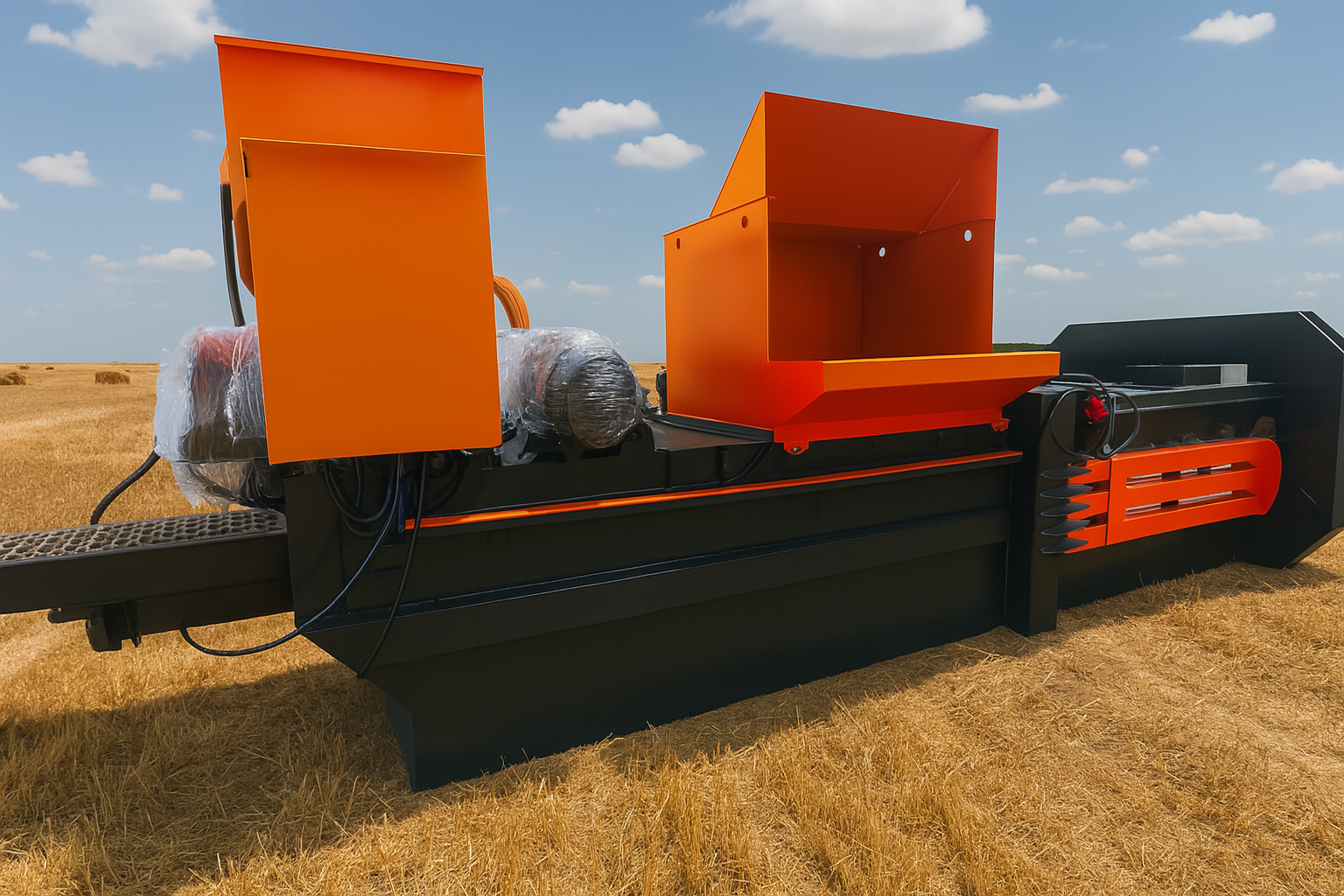

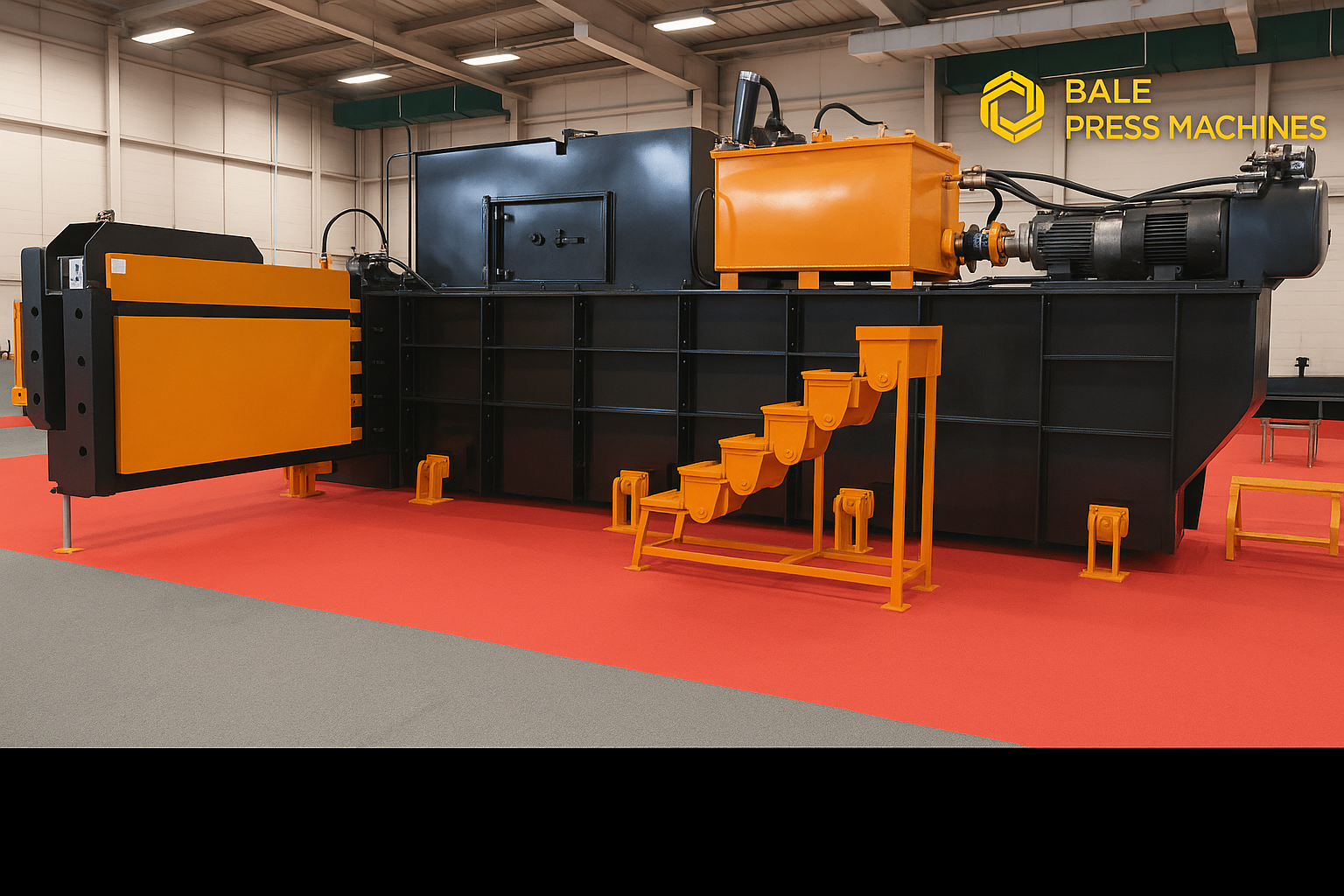

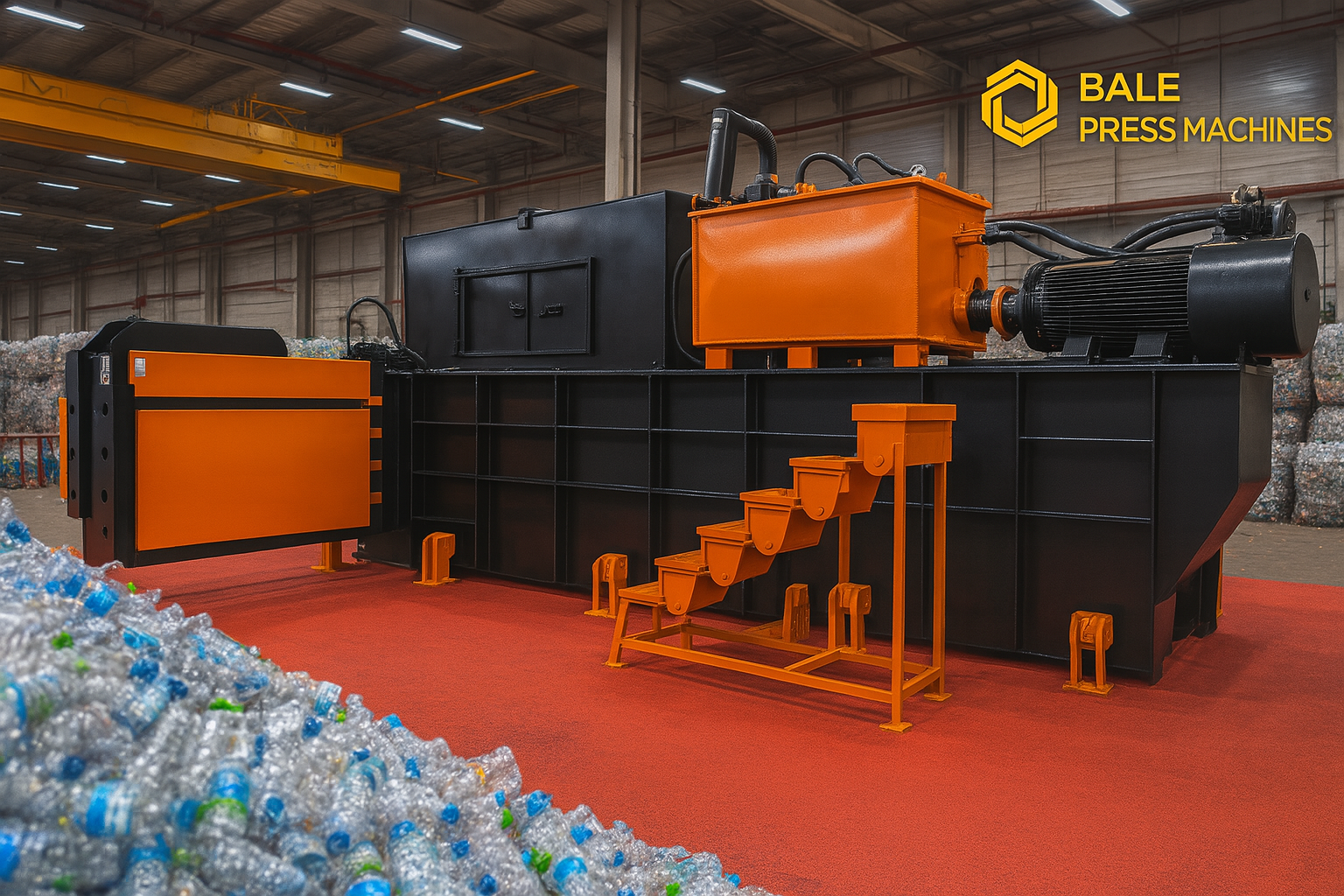

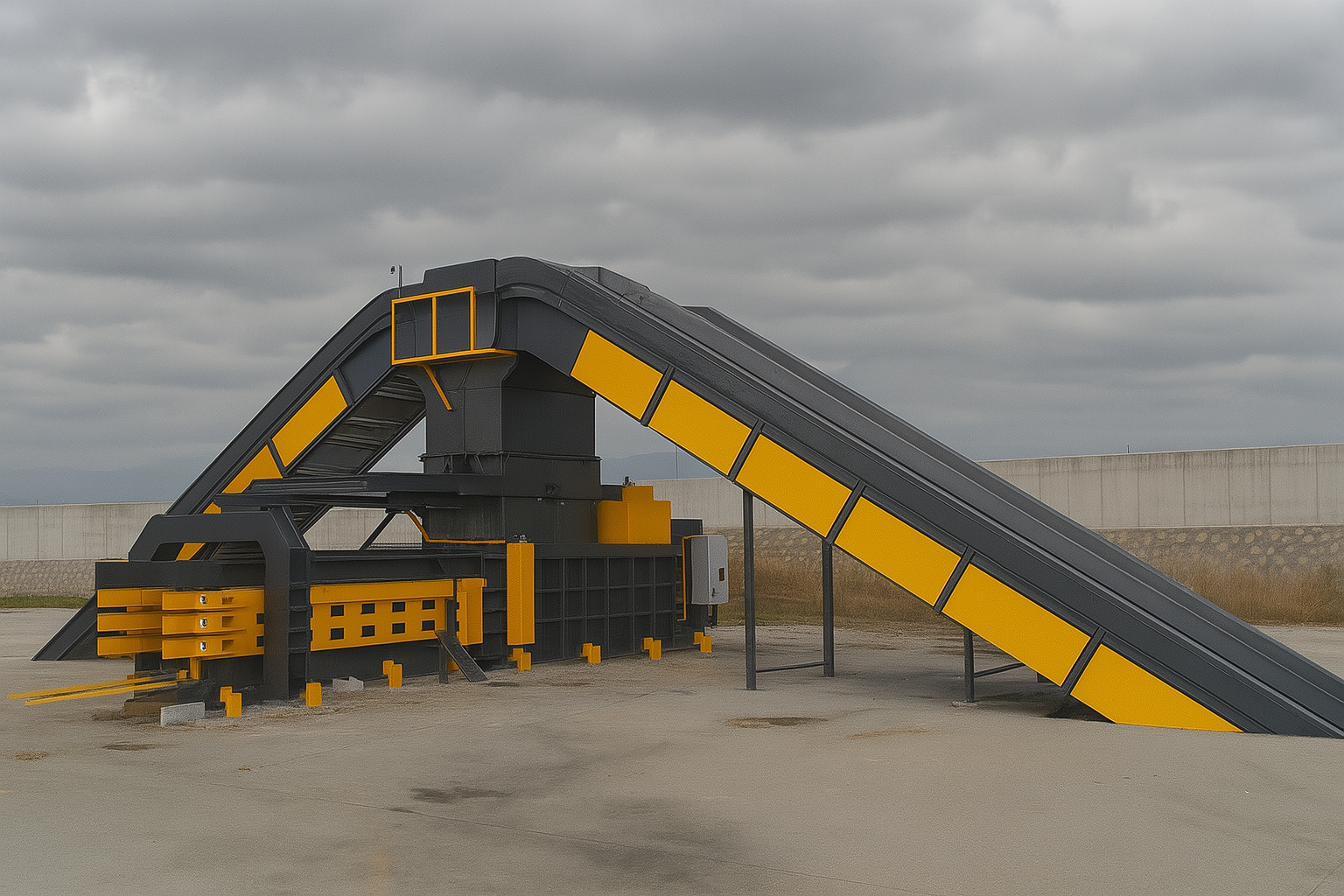

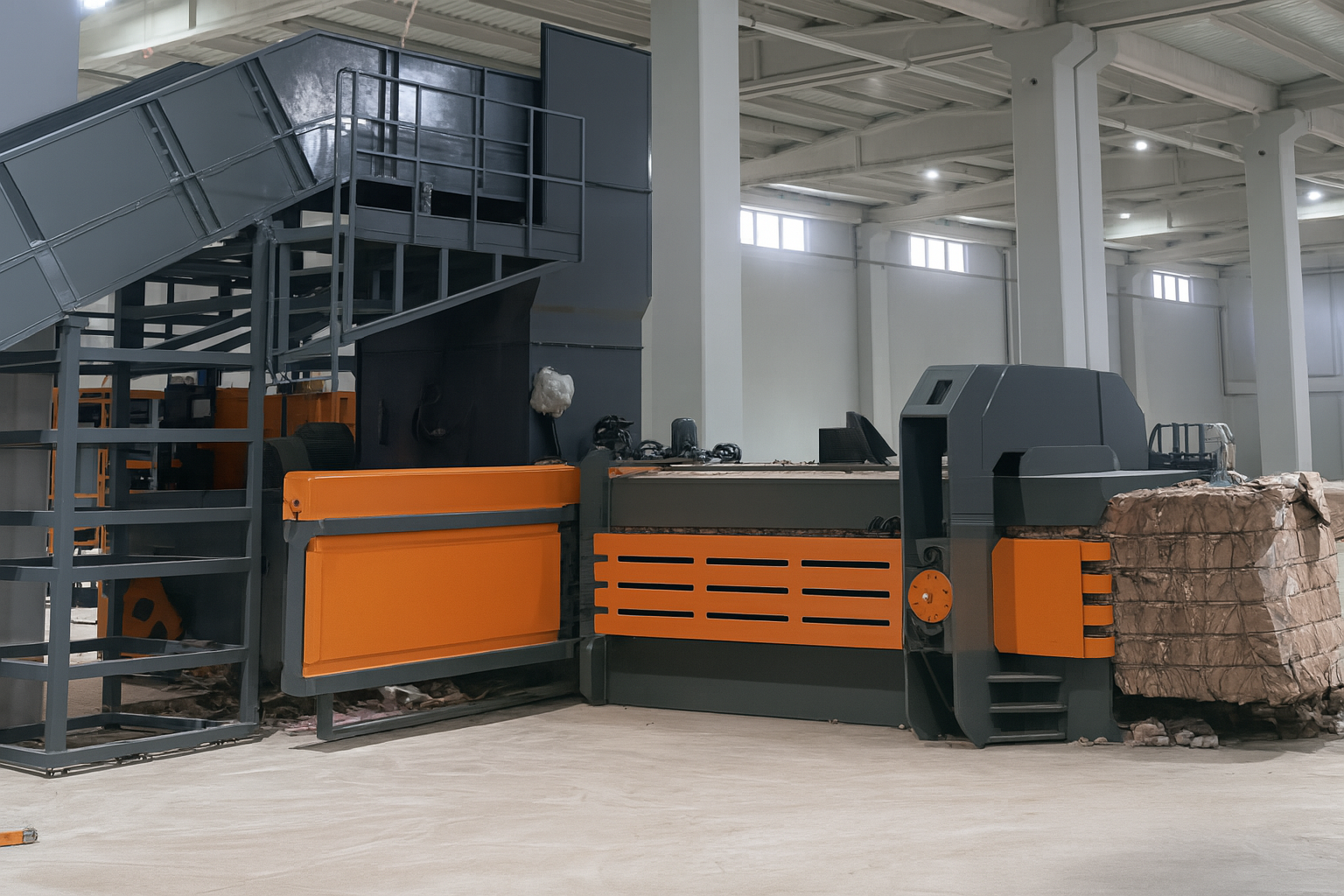

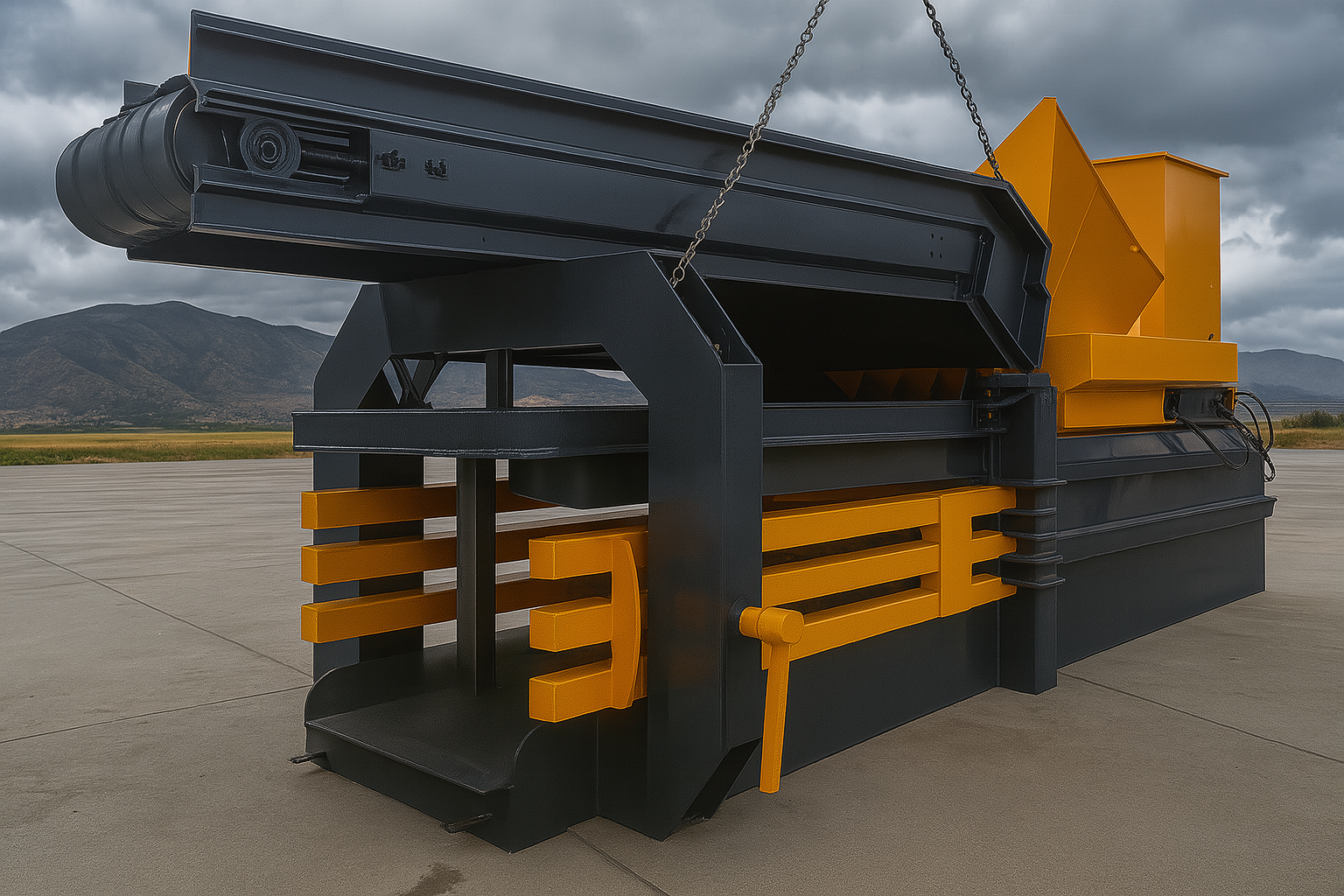

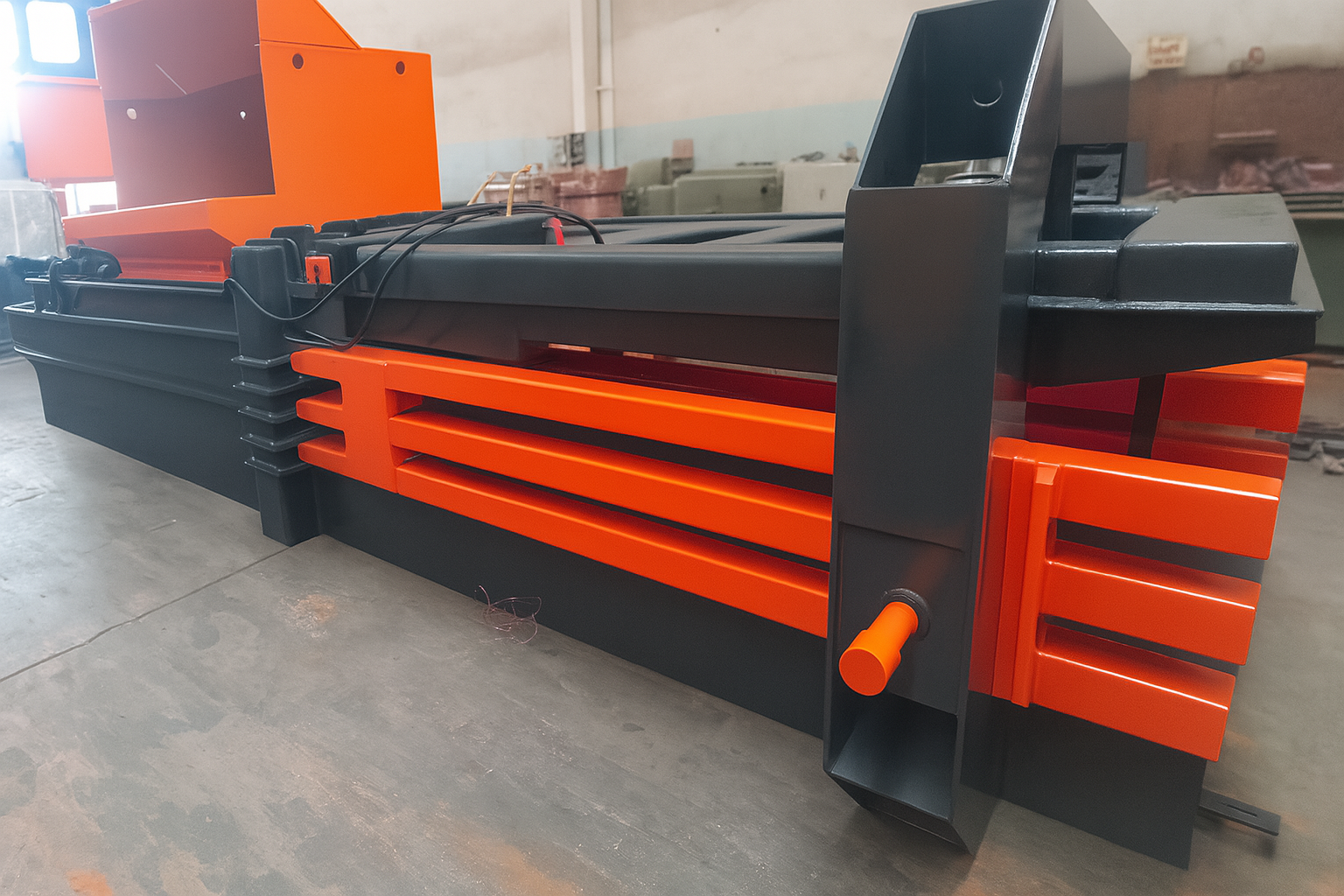

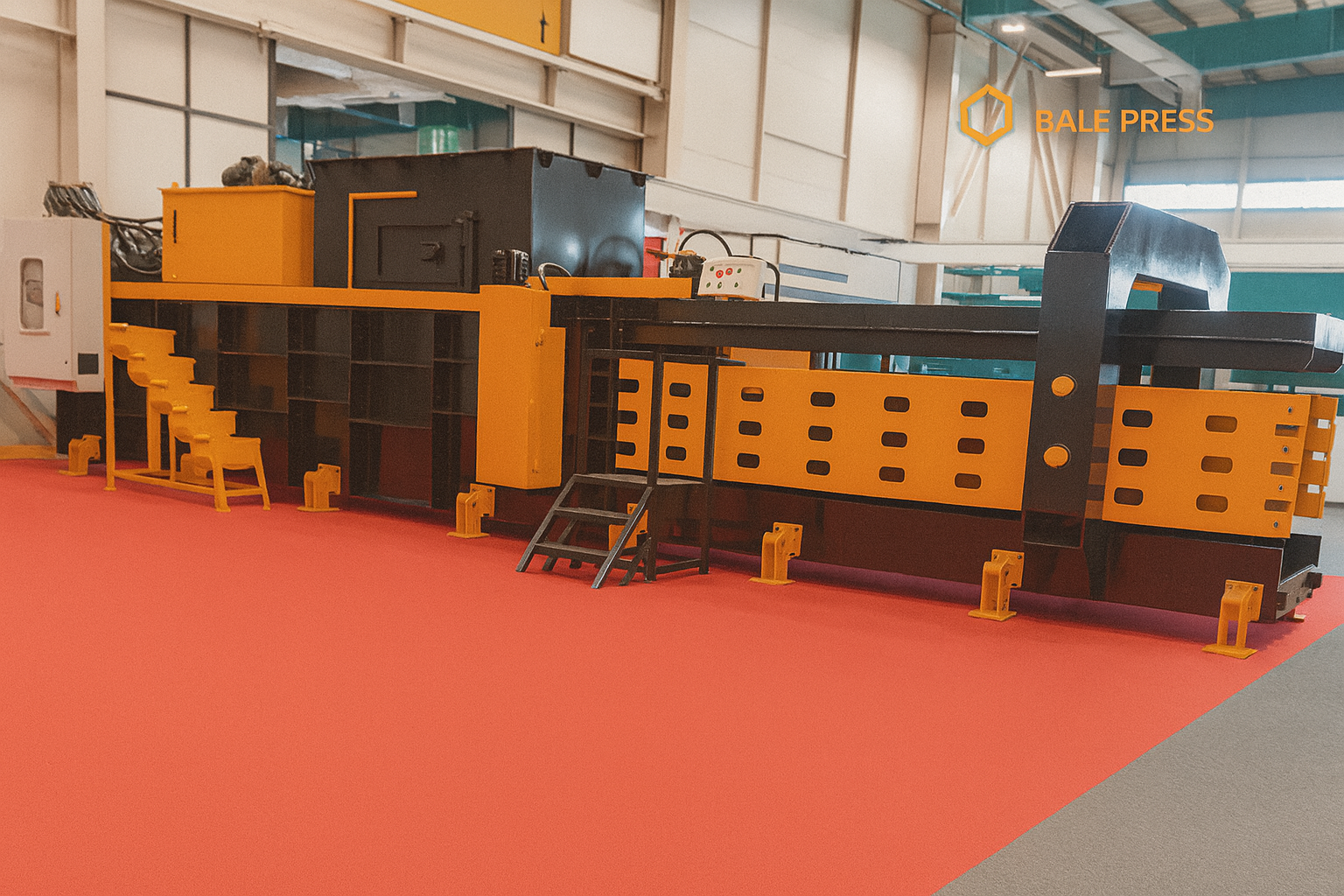

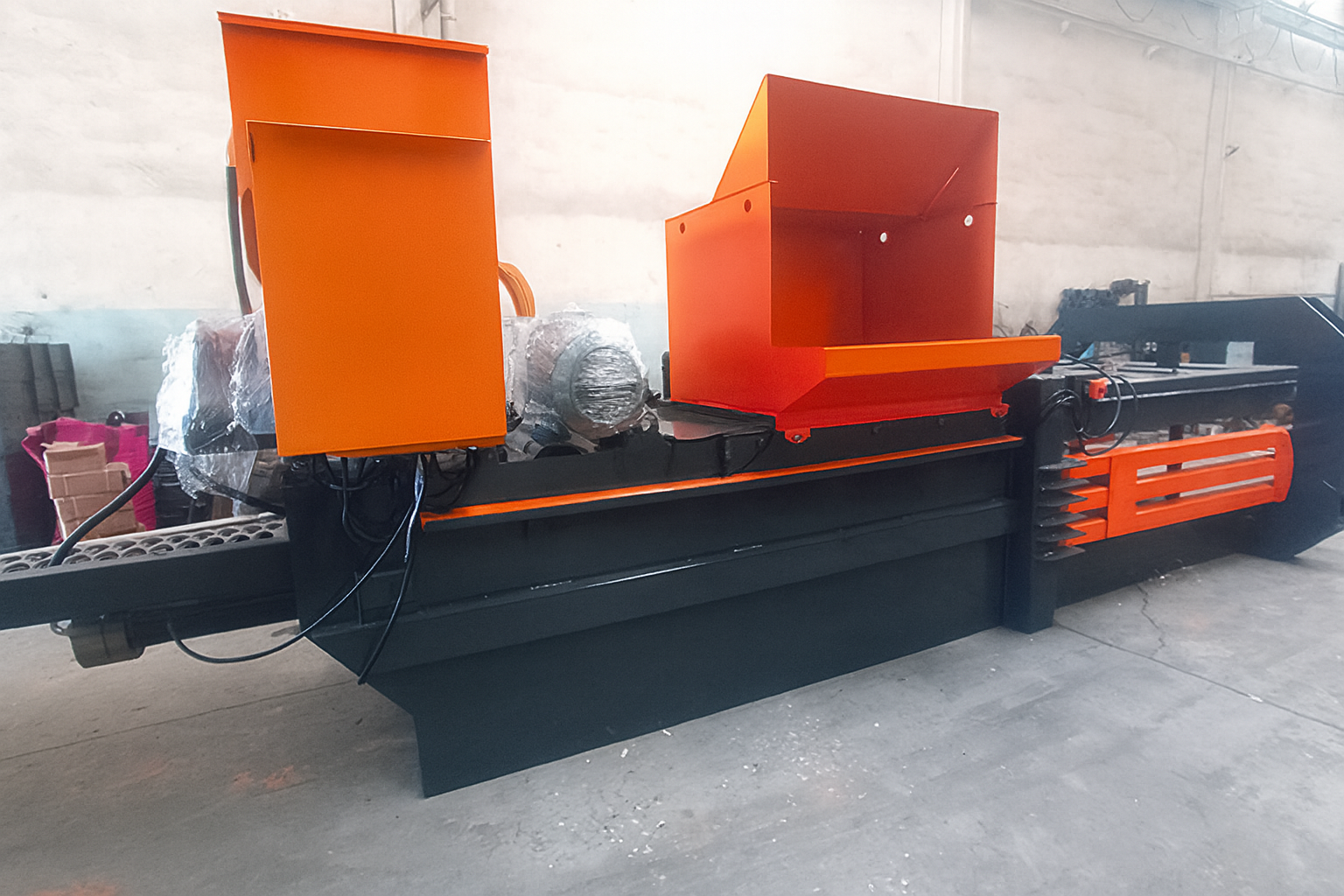

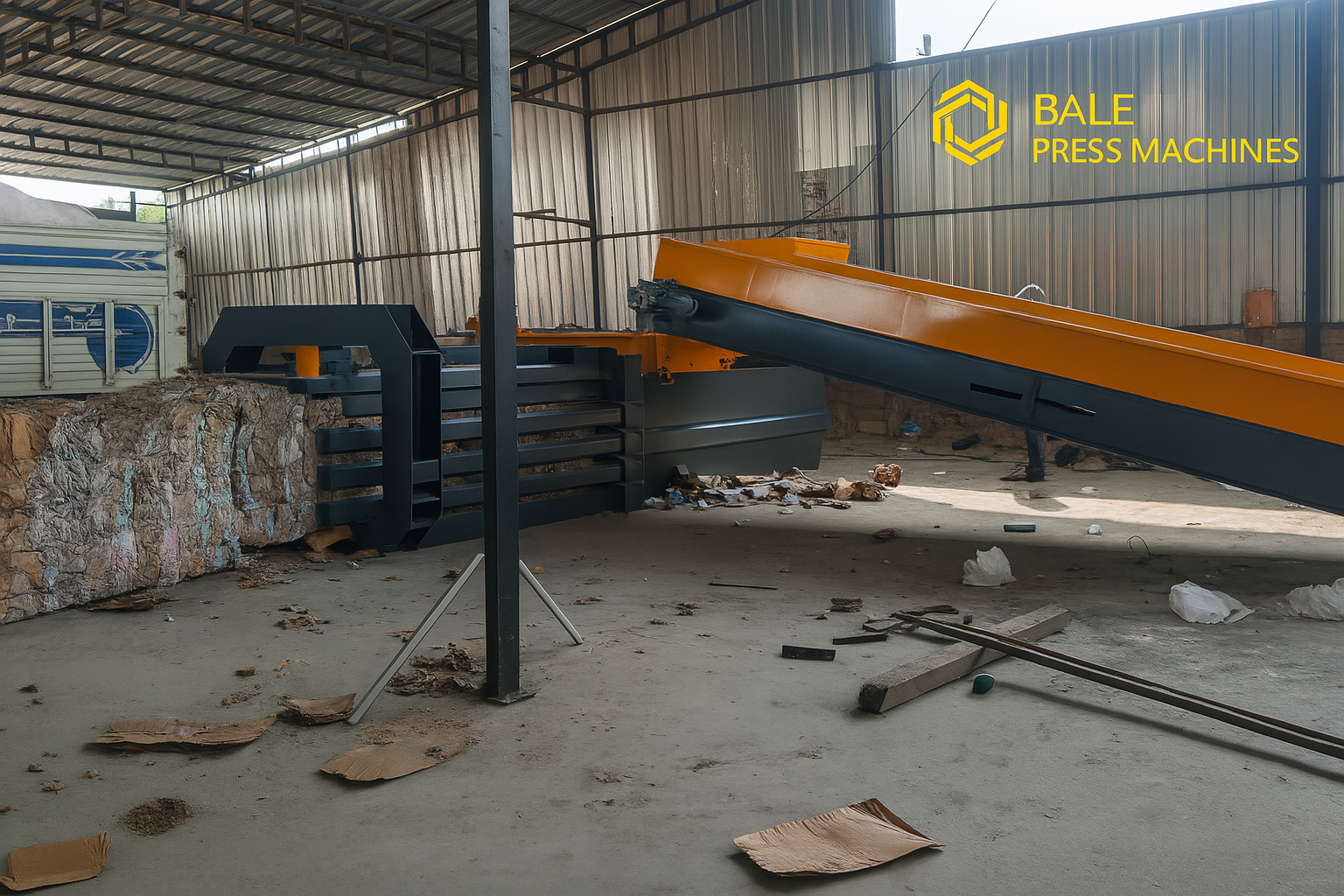

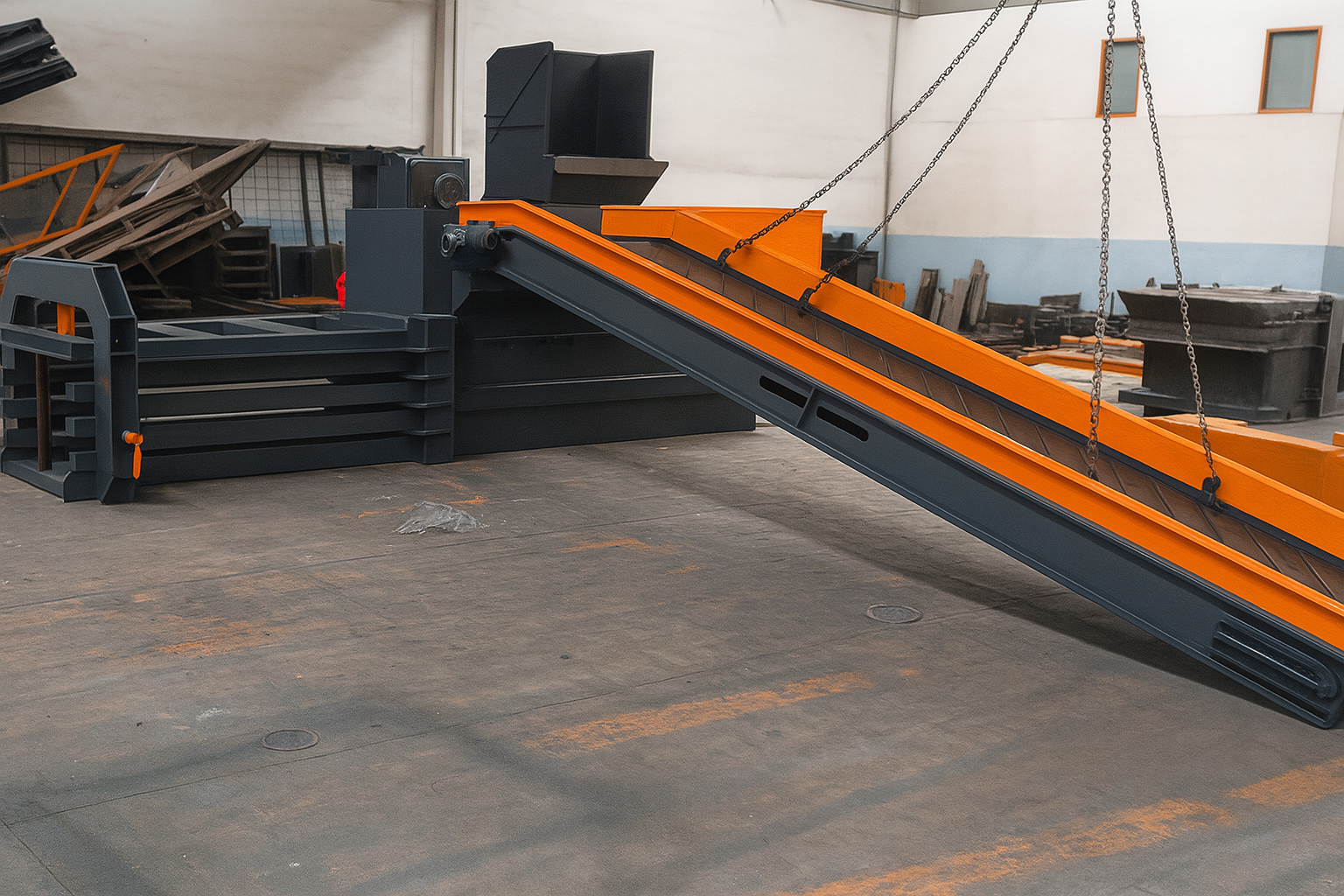

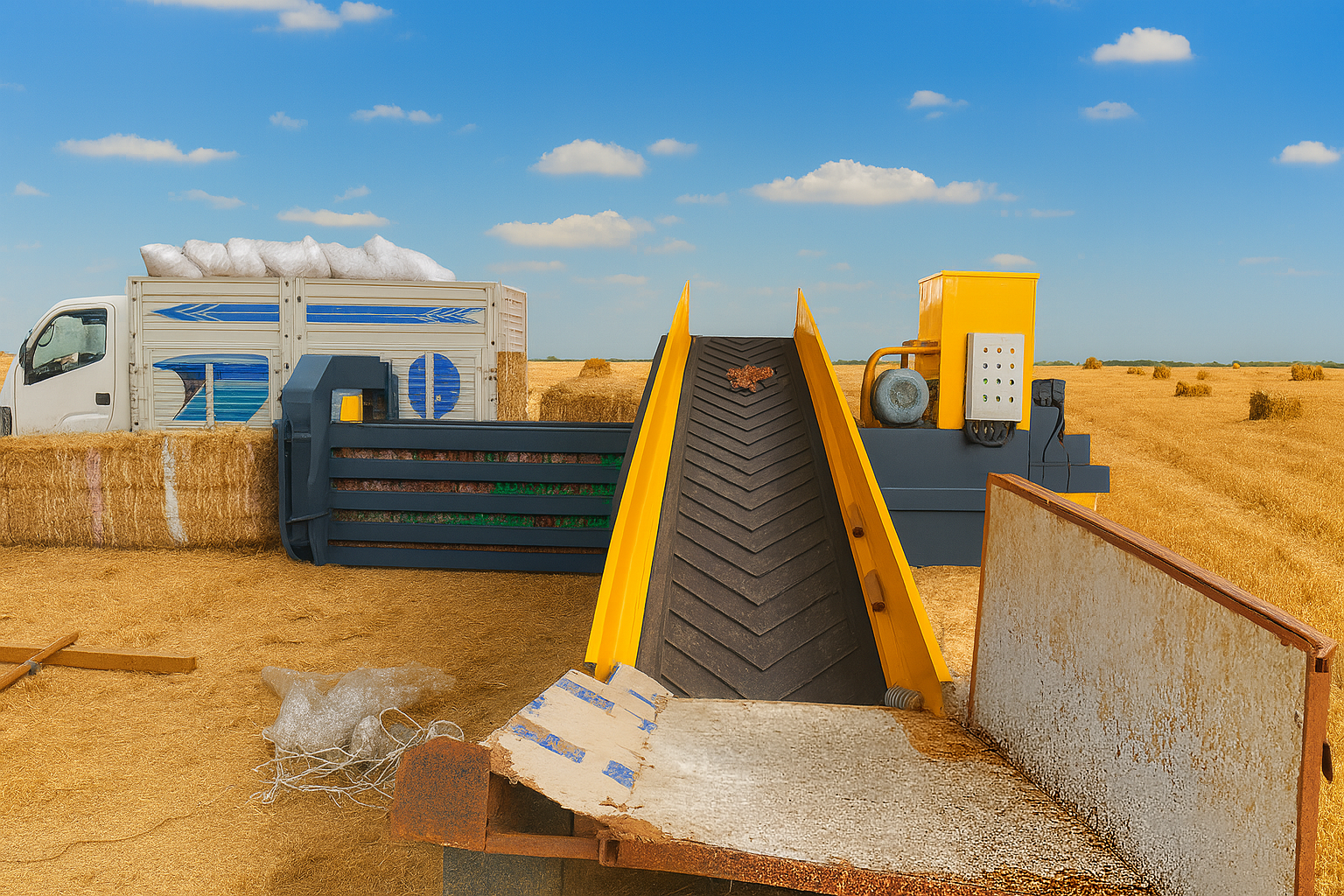

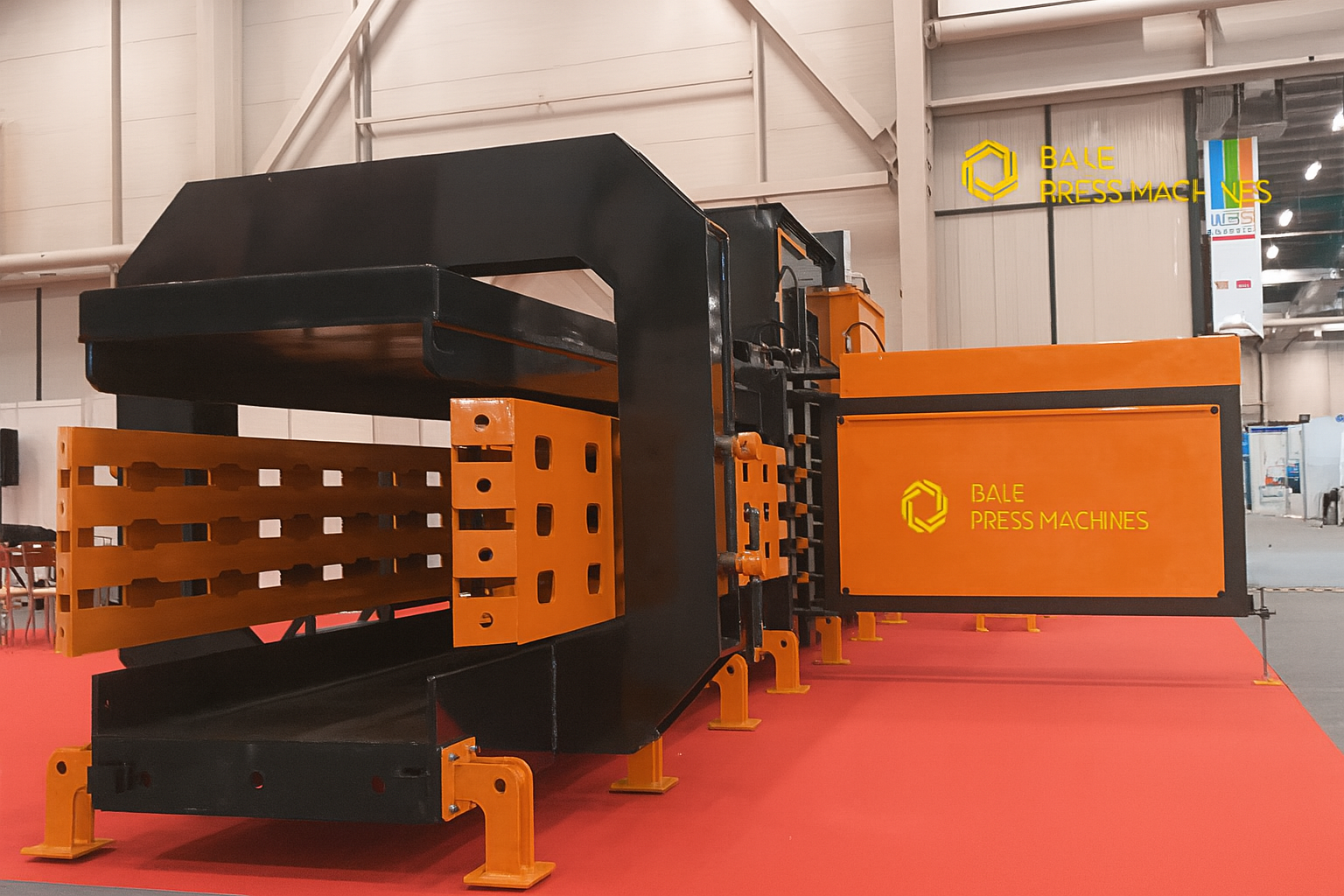

Prem170
Prem170
Automatic baling presses enable efficient recycling of industrial waste by transforming it into high-density bales with a capacity of 2 to 30 tons per hour.
- Feeding chamber (width length height) 115200125
- Squeezing time 30 seconds
- Main press cylinder pressing power 170 tons
- Wire binding 5 wire automatic binding
- Working pressure: 250-300 bar
- Electric motor power: 2 X 75 KW
- Machine operation is electric automatic
- Machine weight=28,000 kg
- Bale weight 1250 – 2000 kg

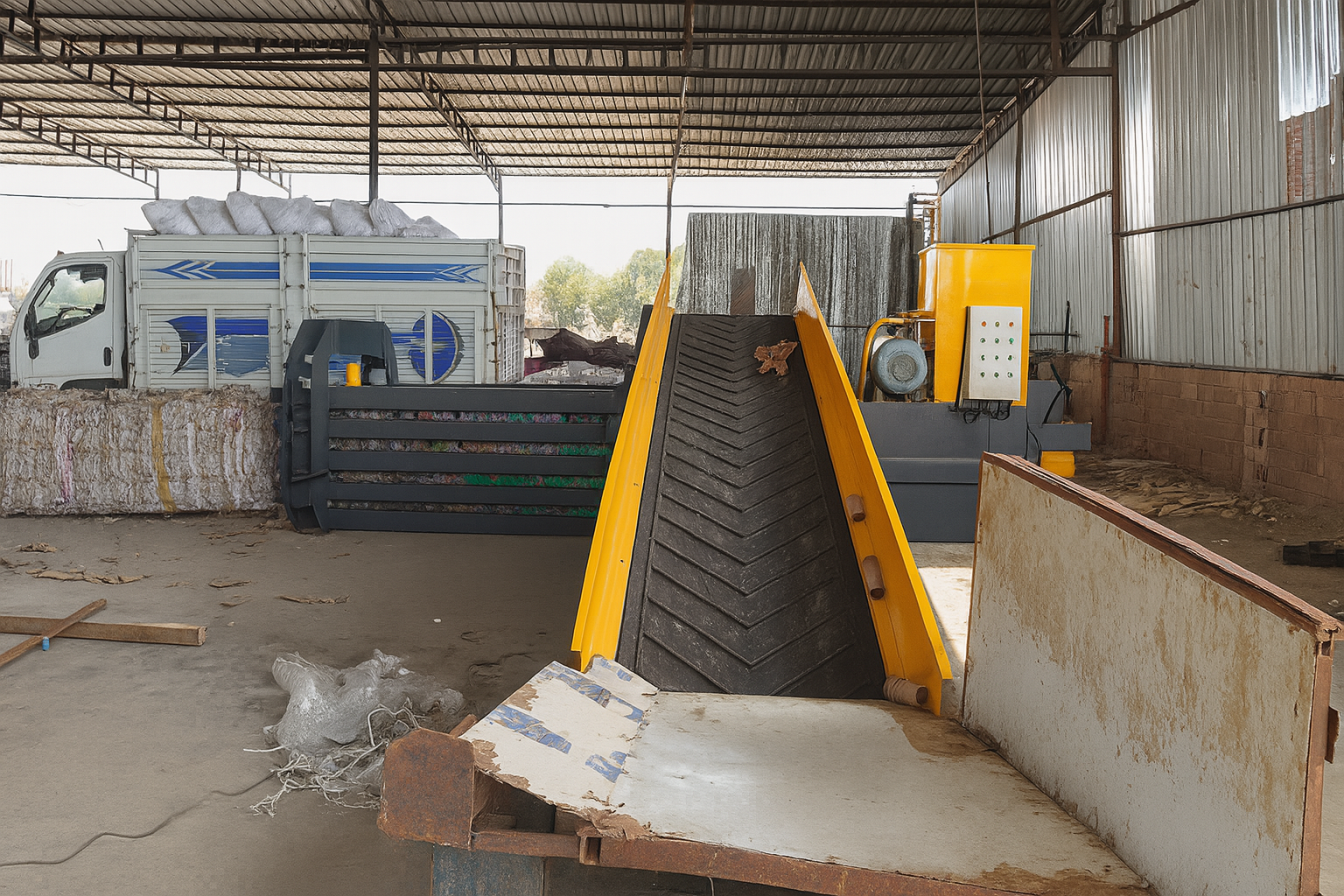

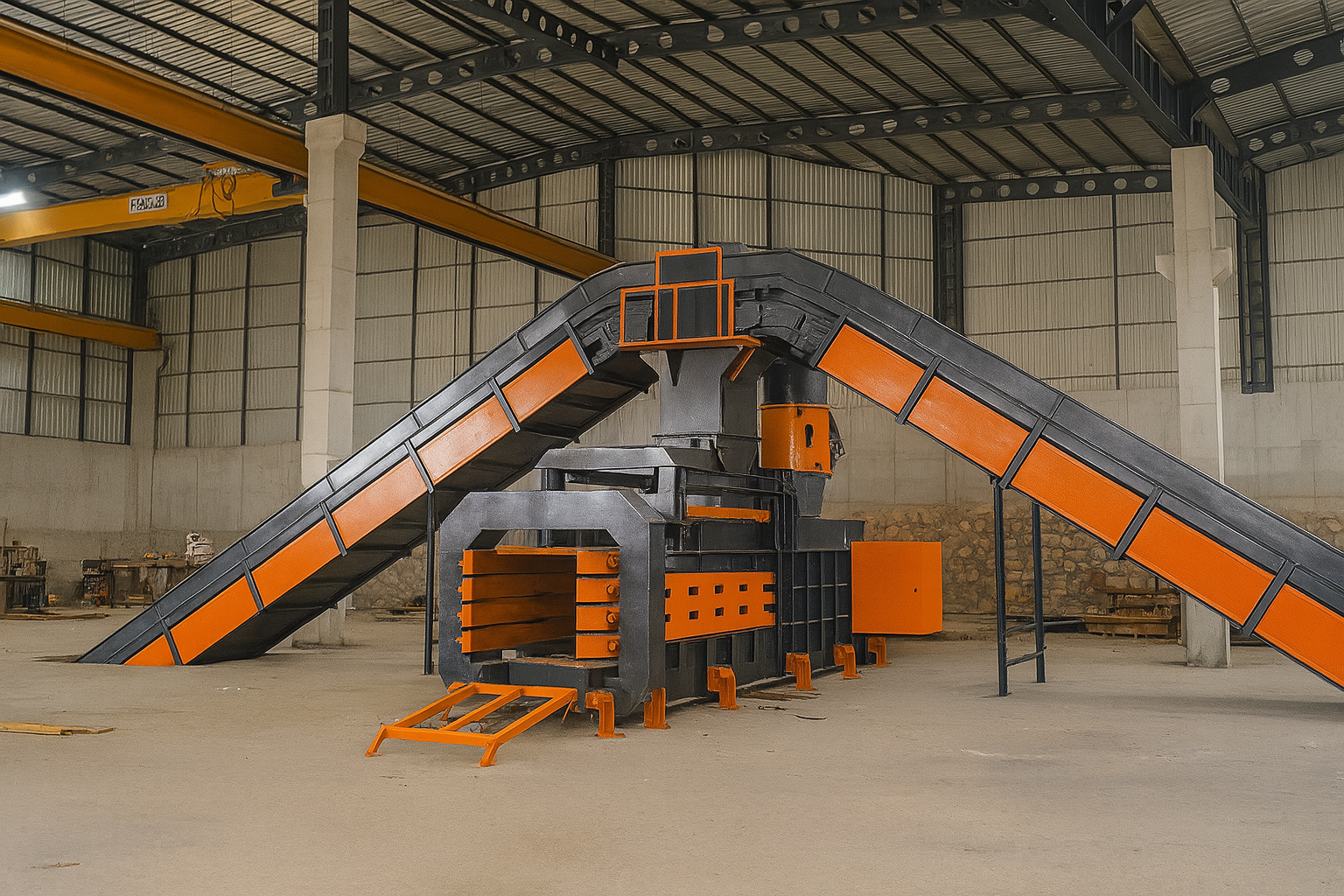

- Conveyor belt Z type 16 mt 185 CM
- Daily capacity 18 tons per hour
- The inside of the press will be 8 mm hardox coating.
- Height of filling chamber 5m from the ground
- Base side upper tables 35mm ST 37 sheet metal platine
- Side body sheets 25mm sheet metal grid
- Electrical automation panel siemens
- Hydraulic pump 200cc + 200cc kawasaki
- PNC automation
- Conveyor dimensions 185cm x 1600cm width and length
- Conveyor transmission kr 573 15/d/d
- power big cooler
Automatic Bale Press Machines: Efficiency and Technology in Industrial Waste Management
Automatic bale press machines are among the machines that offer high efficiency by compressing industrial waste to take up less space. These machines, which play an important role in recycling and waste management processes, are used especially in baling paper, plastic, cardboard, metal and textile waste. Thanks to their automatic working systems, they minimize the need for manpower and provide businesses with time, cost and space savings.
What is an Automatic Bale Press?
An automatic bale press is a machine that compresses waste with high pressure into compact bales and performs this process automatically. These machines can feed, compress, bale and tie waste without operator intervention. It is especially preferred in factories and recycling facilities that produce high volumes.
Explanations
Automatic bale press machines are produced in different capacities and features. However, these machines generally have the following technical features:
Pressing Power: It creates high density bales with hydraulic pressing power, which usually varies between 50 tons and 200 tons.
Capacity: It can vary between 2 and 30 tons per hour. This depends on the press’s engine power, cylinder diameter and compression speed.
Automatic Wire Tying System: The process of tying the pressed waste with wire is done automatically so that it does not unravel.
PLC Control Panel: Thanks to the programmable logic control (PLC) system, the processes are digitally controlled and monitored.

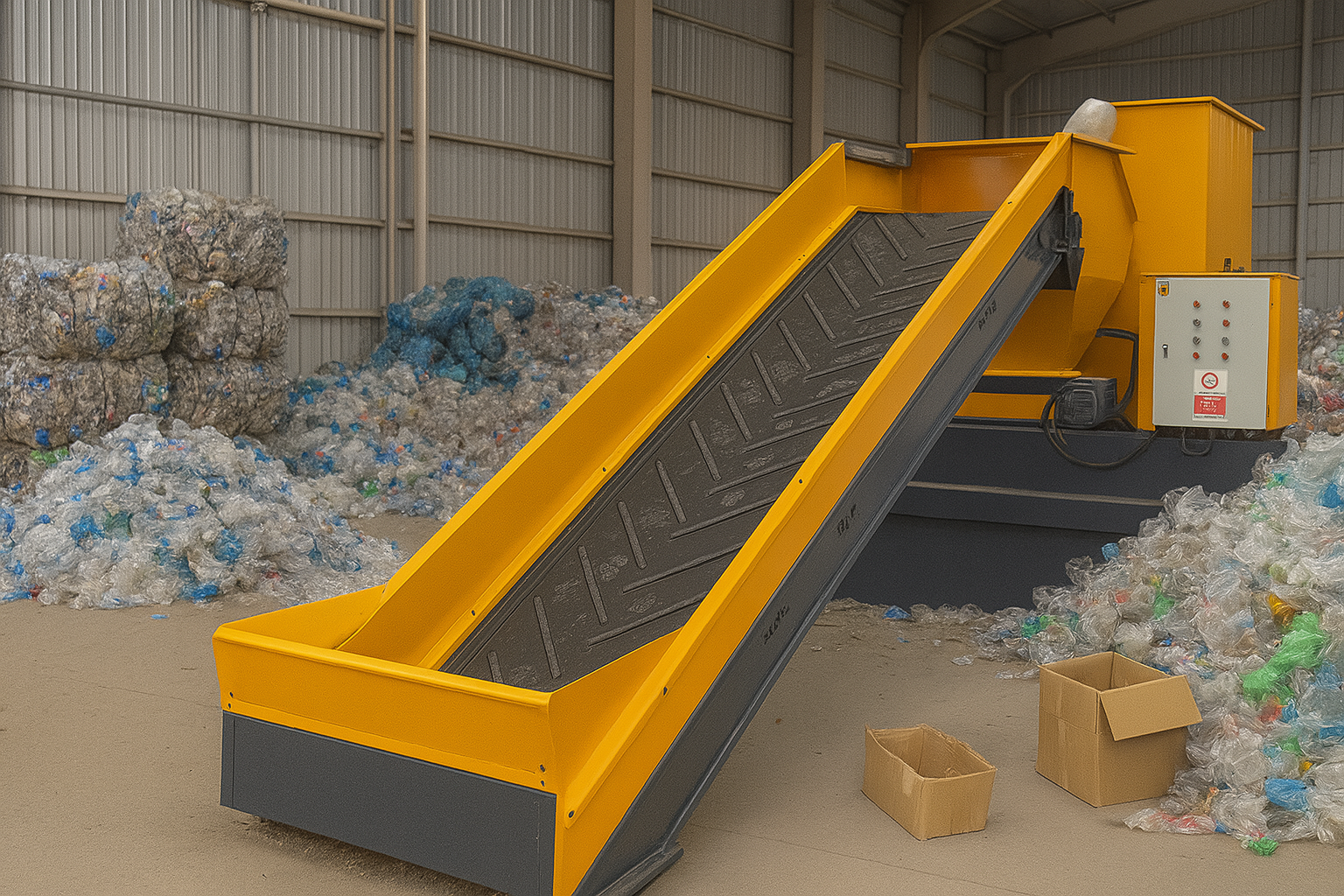

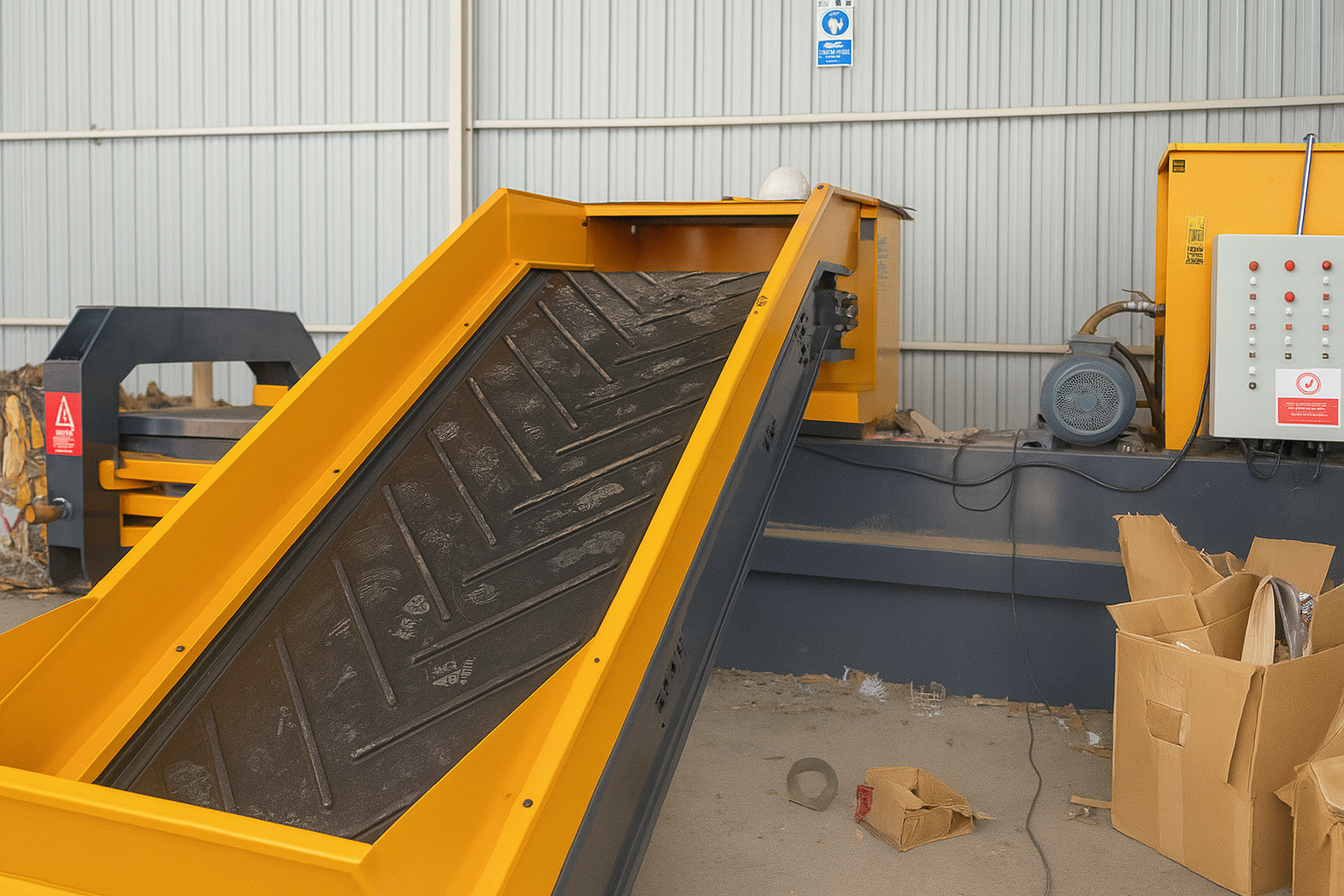

Feeding Conveyor: There are automatic conveyor systems that allow the waste to be transported to the machine.
Bale Dimensions: Standard bale dimensions are generally 800×1100 mm and may vary depending on the manufacturer.
Advantages of Automatic Bale Press Machines
Time Saving: It reduces the need for labor and ensures production continuity thanks to the automatic working system.
Space Saving: Compressed waste takes up much less space, and efficiency in the storage area increases.
Cost Reduction: Provides significant savings in transportation and storage costs.
Environmentally Friendly: Accelerates recycling processes and supports environmentally friendly waste management.
Occupational Safety: Increases operator safety by minimizing manual intervention.
Areas of Use of Automatic Bale Presses
Automatic bale presses can be used in a wide variety of sectors:
Paper and cardboard factories
Plastic recycling facilities
Food and beverage production facilities
Textile industry
Logistics and storage centers
Market chains and retail areas
What to Consider When Choosing Automatic Bale Press Machines?
The following criteria should be considered when choosing a machine:
Daily waste amount of the business
Waste types (plastic, cardboard, metal, etc.)
Bale dimensions and weight requirements
Automation level (semi-automatic or fully automatic?)
Service and spare parts support
Conclusion
Automatic bale press machines are indispensable equipment for modern waste management processes. It is an ideal solution for businesses that want to achieve recycling and environmentally friendly production goals with high performance, low energy consumption and minimum labor requirement. Automatic bale presses are a technological solution that amortizes the investment cost in a short time for sustainable and efficient waste management.
