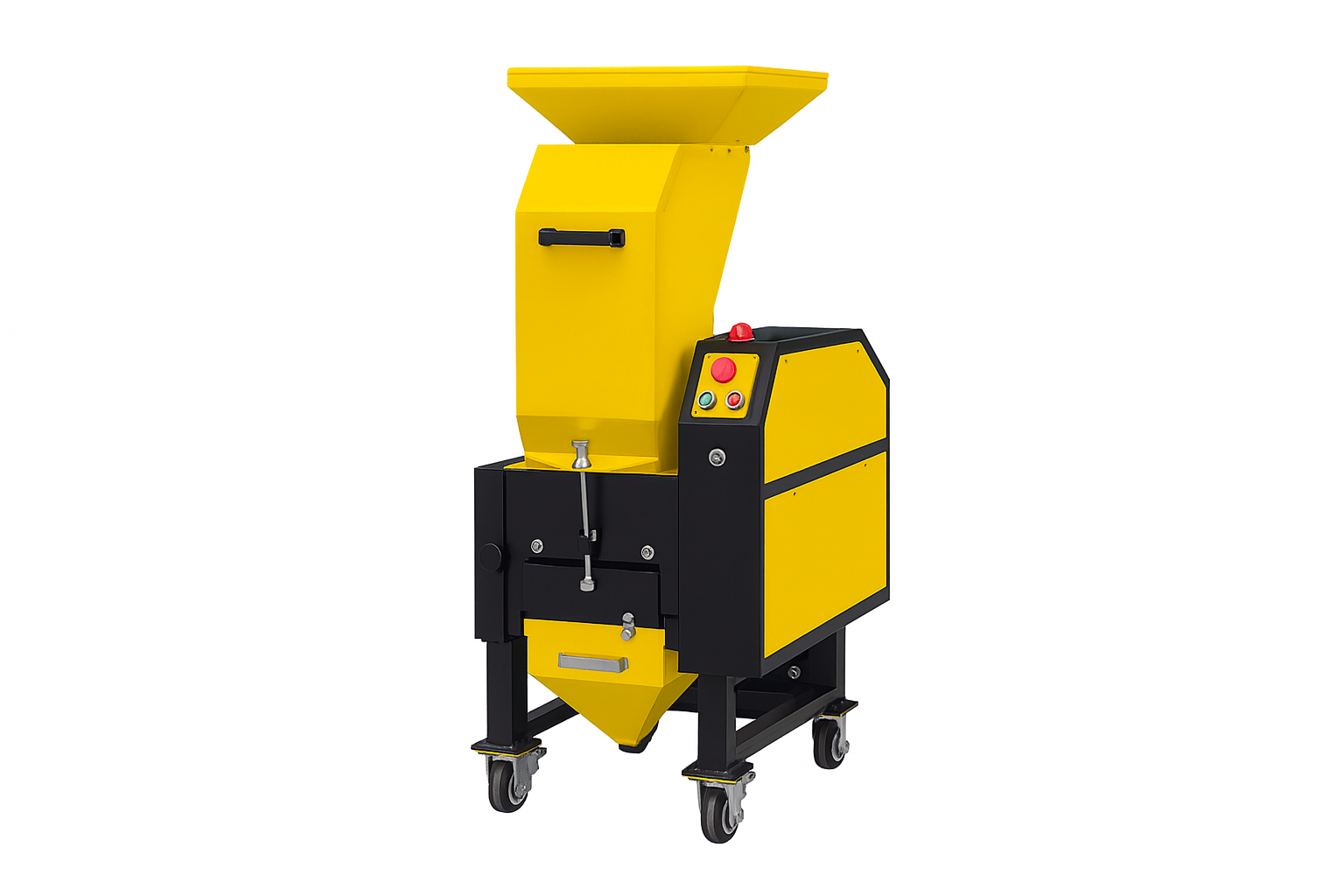

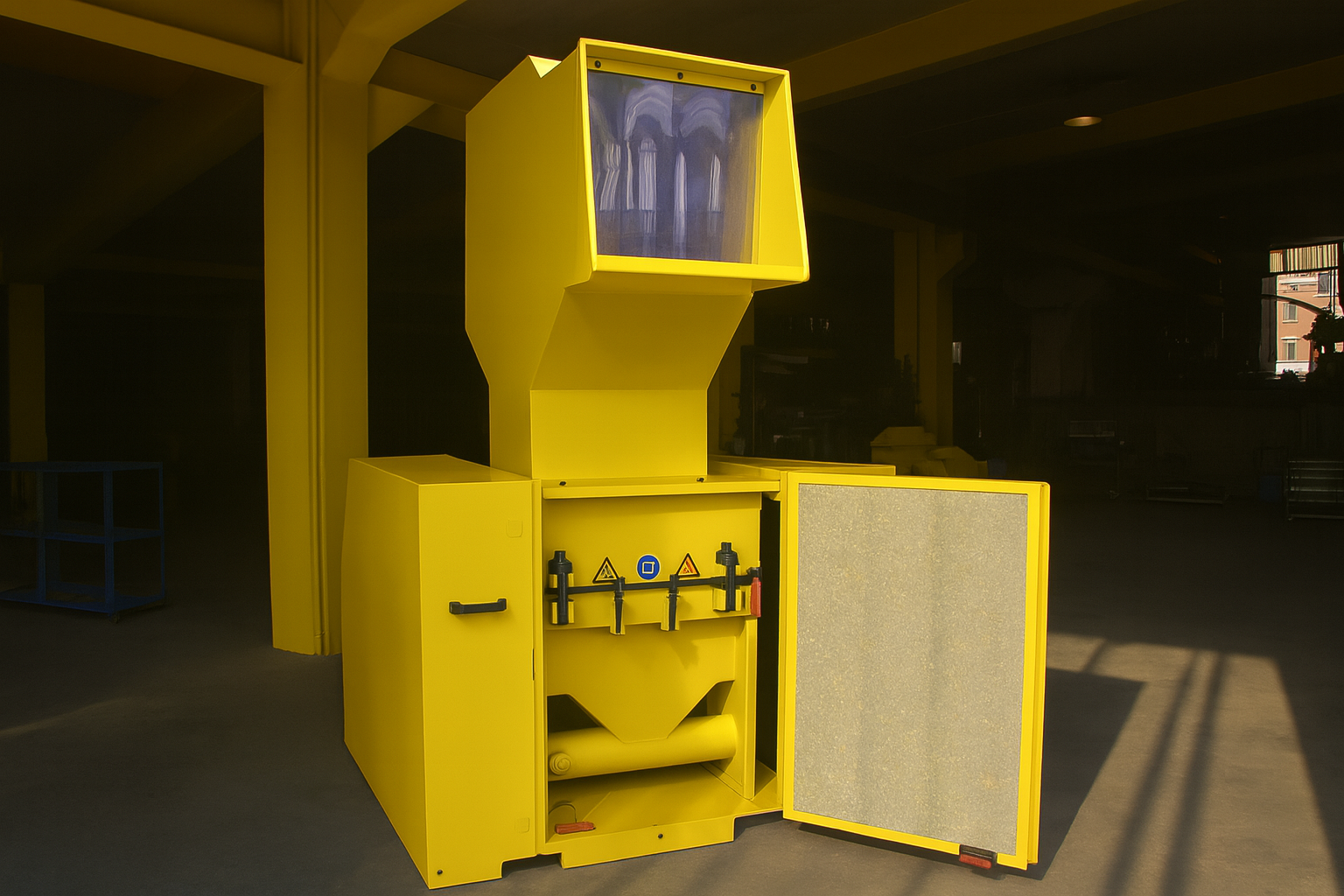

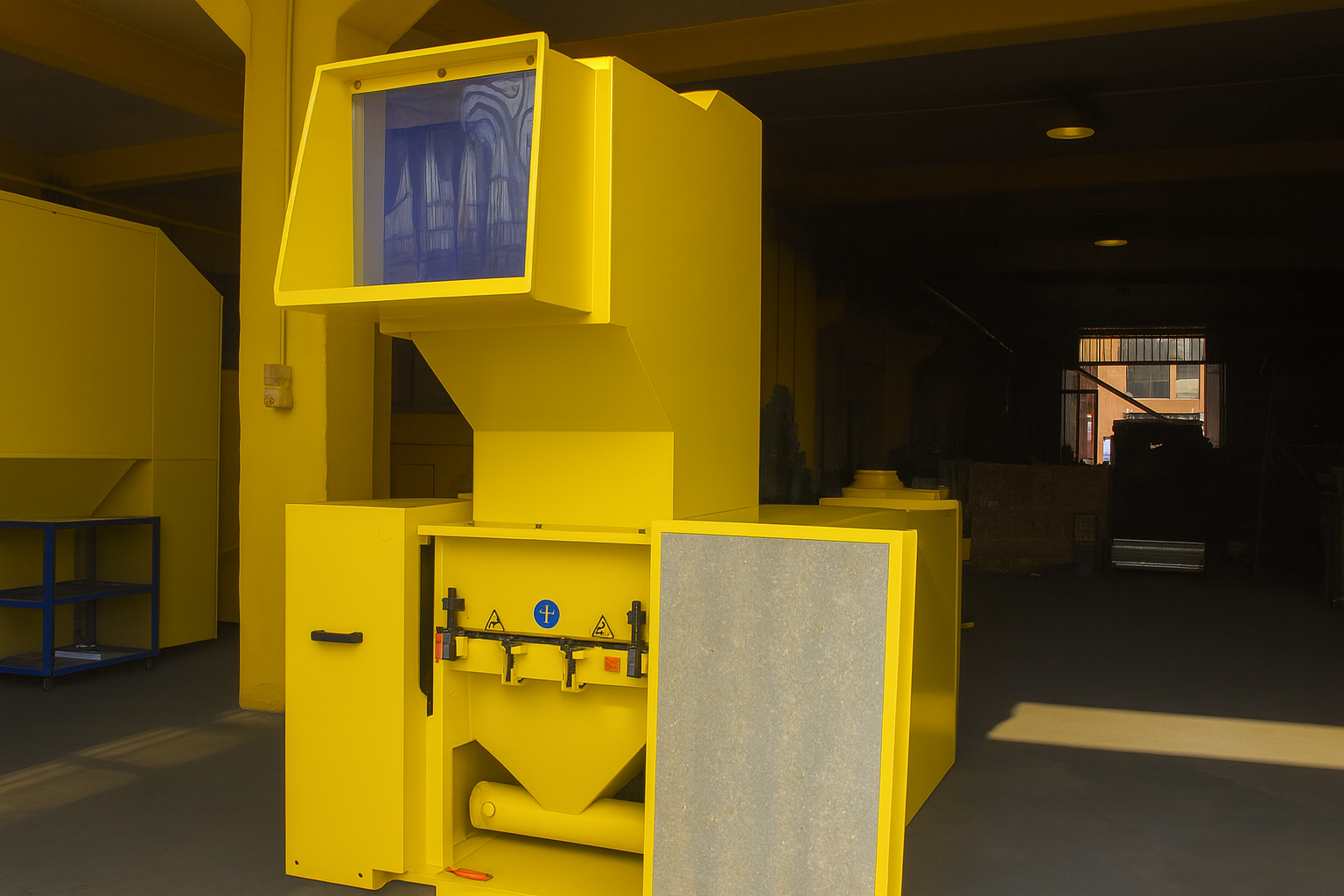

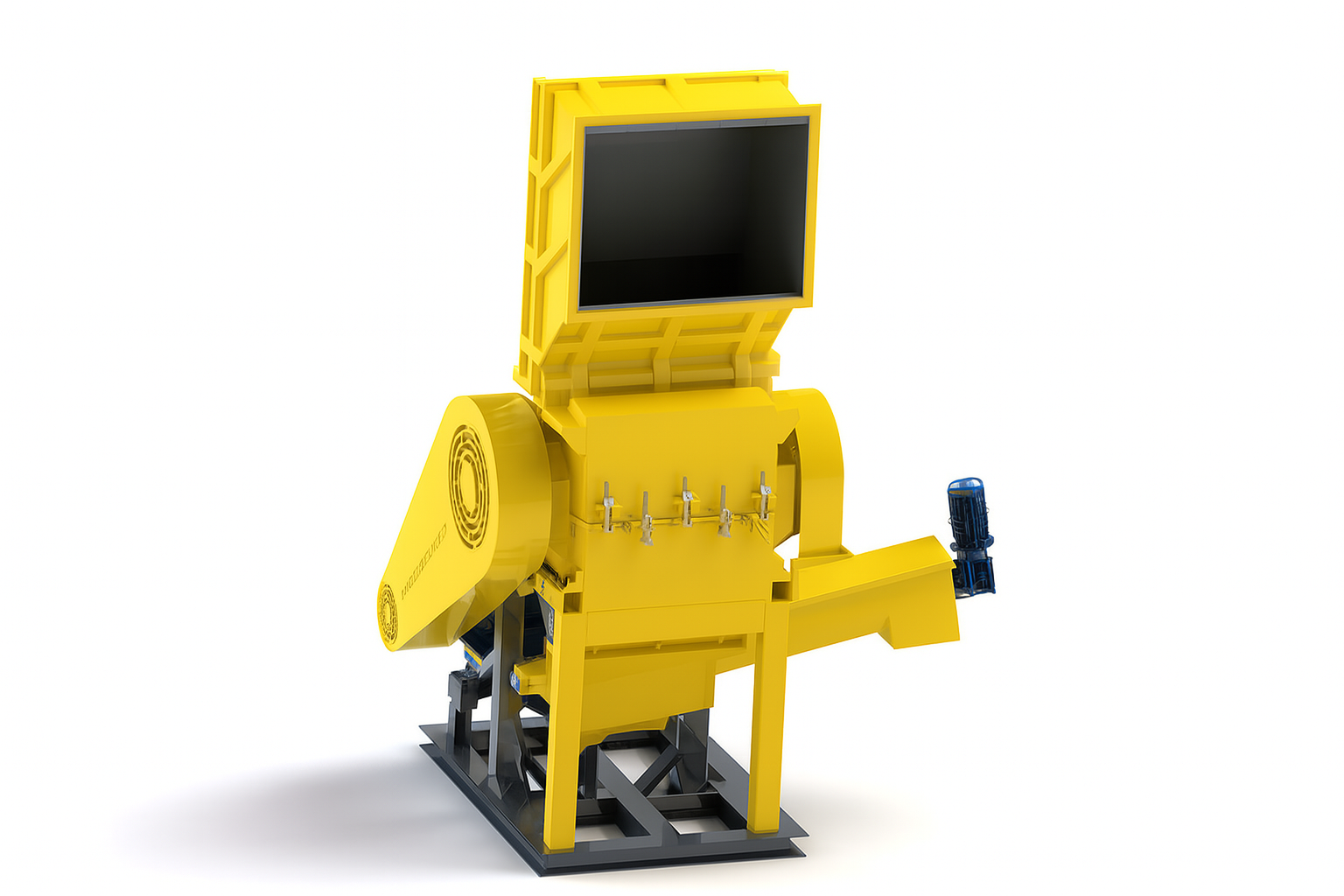

Nylon Waste Shredder Machine – IP4580

In addition to standard fan and cyclone conveyor systems, the system also offers a variety of screw dewatering devices that can be universally connected for humid applications.

  • Model – IP4580
  • Rotor Diameter: 450 mm
  • Rotor Length: 800 mm
  • Number of Rotor Blades: 6 pcs
  • Number of Fixed Blades: 4 pcs
  • Rotor Shaft Speed: 500 – 600 rpm
  • Blade Material: DIN 1.2379
  • Motor Power: 45 kW
  • Screen Hole Diameter: 10 mm (adjustable upon request)
  • Fan Power: 5.5 kW
  • Hydraulic Pump Motor Power: 1.5 kW

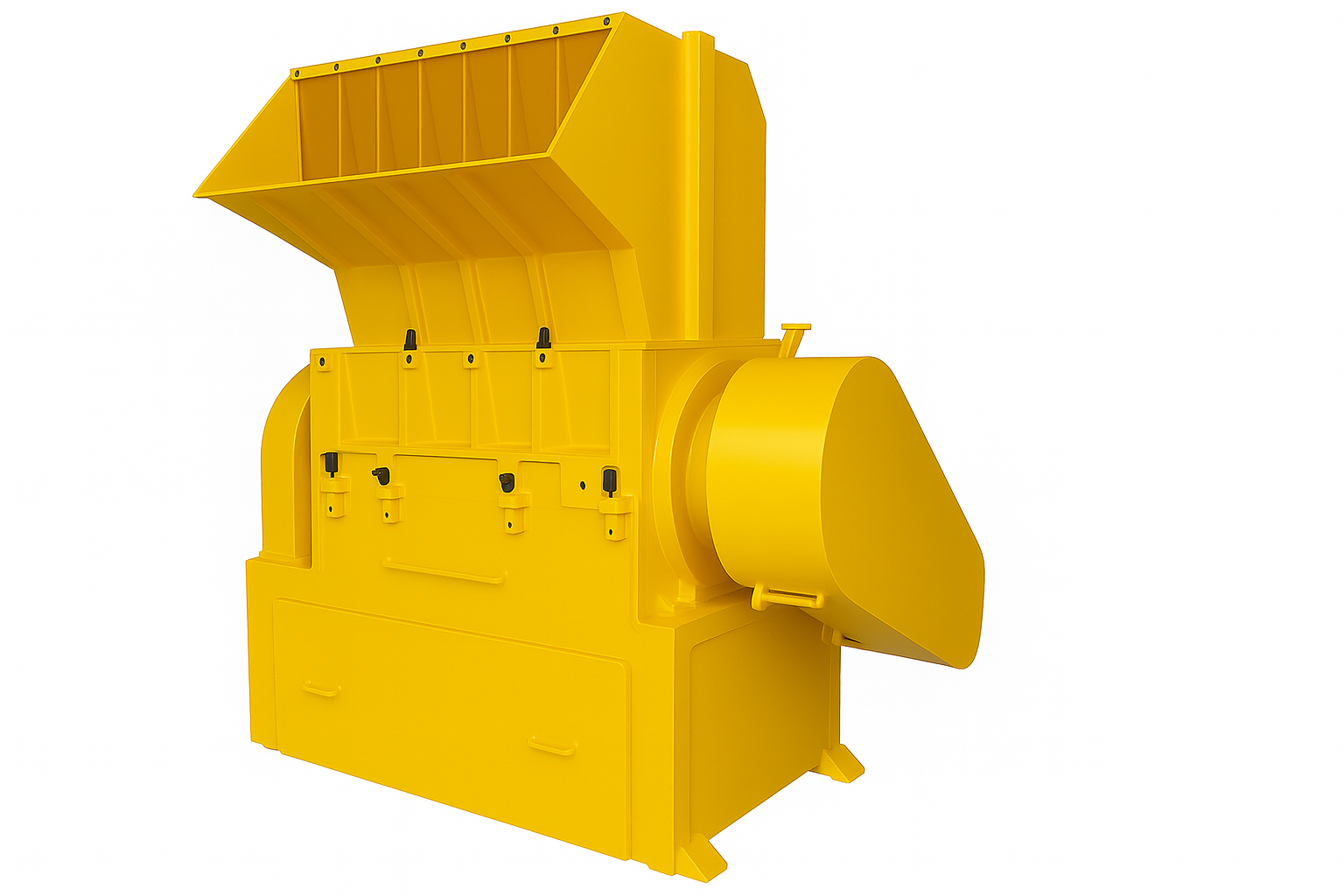

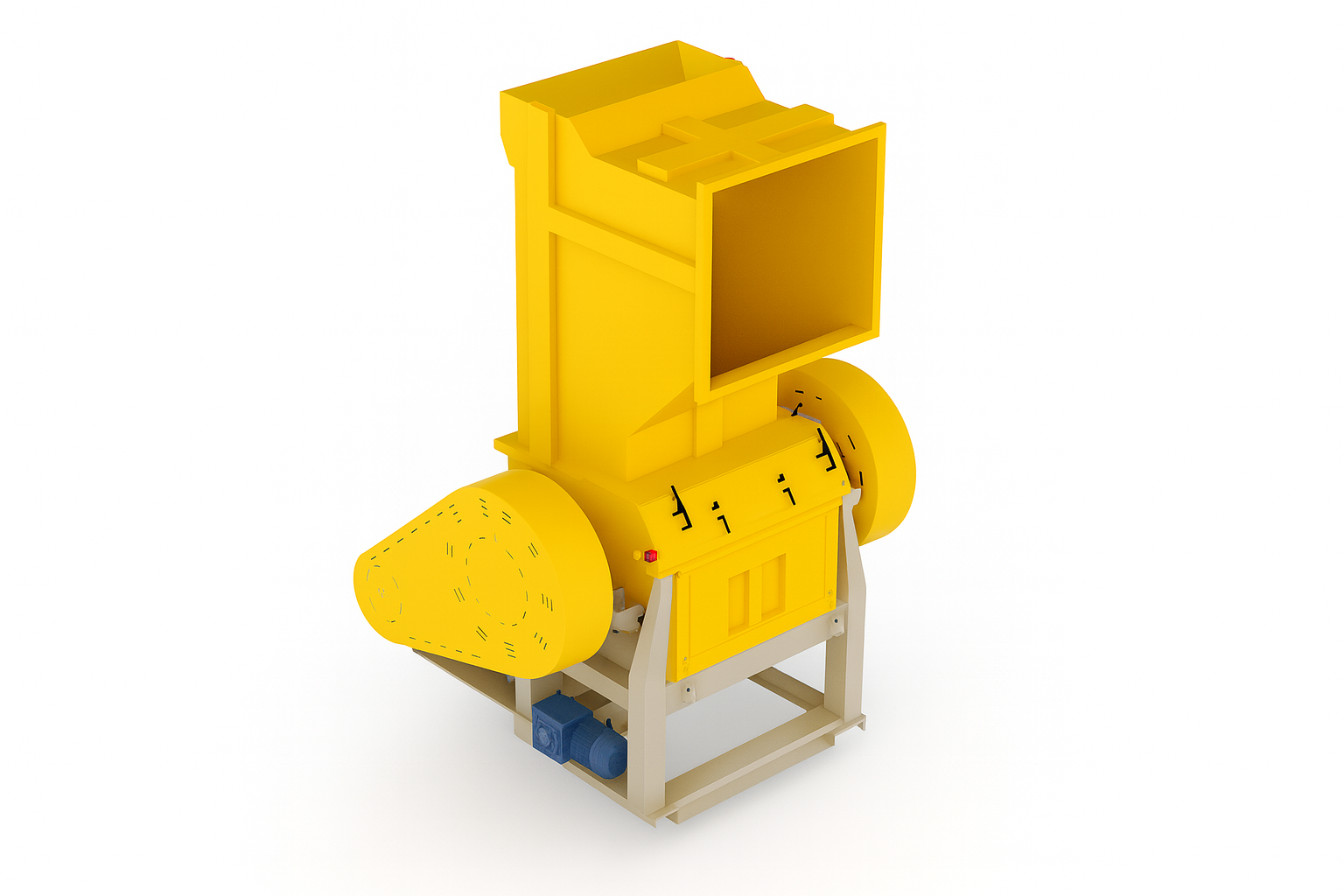

IPKIRIM 45/80- High-Capacity Plastic Crusher with Optimized Rotor Flow Design
The IPKIRIM 45/80-XX plastic granulator features an advanced rotor structure equipped with integrated sidewall flow channels. These channels utilize centrifugal force to guide processed material away from the rotor, effectively preventing clogging and buildup inside the machine. This ensures continuous operation without requiring special positioning of the blades.
Thanks to its 45 kW energy-efficient motor, the machine delivers powerful crushing capacity while maintaining low power consumption — ideal for high-throughput applications.
After each grinding cycle, cutting distances can be quickly recalibrated using the easy-to-adjust fixed and rotary blade system, reducing downtime and ensuring optimal performance.
The machine is fitted with a reversible screen (standard diameter: 10 mm, customizable upon request), which helps extend screen lifespan and maintain consistent particle output.
Engineered for durability and low-cost maintenance, the IPKIRIM 45/80-XX is the perfect solution for recycling professionals seeking long-term efficiency, flexibility, and performance.
Advanced Plastic Granulator for High-Efficiency Inline and Offline Recycling
Engineered with a reinforced rotor and heavy-duty bearing design, this plastic granulator is ideal for reclaiming a wide range of production waste — including pipes, profiles, preforms, bottles, and blow-molded components. It is fully compatible with wet or dry granulation, making it especially suitable for extrusion scrap recovery such as purging lumps and blocks in the recycling industry.

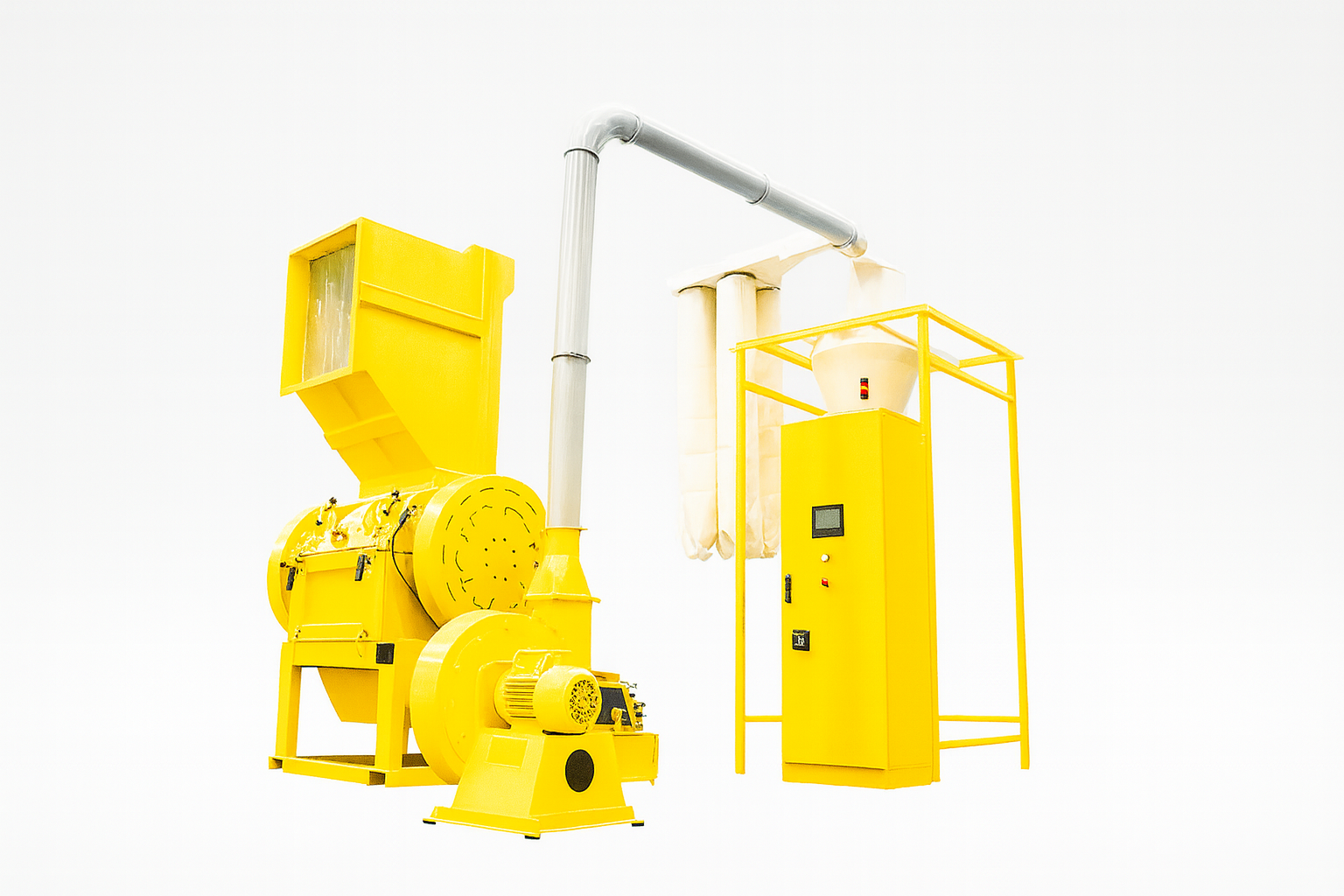

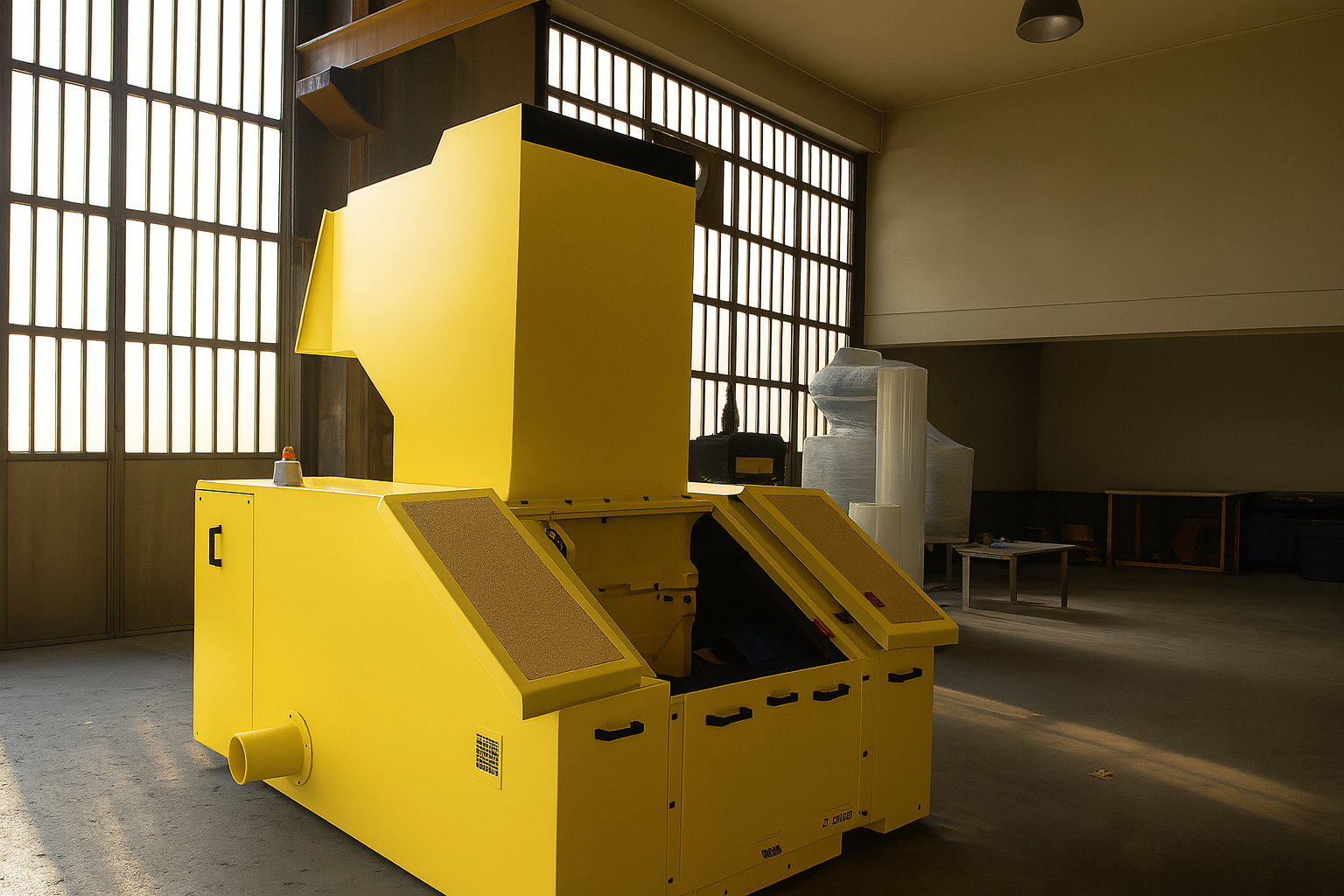

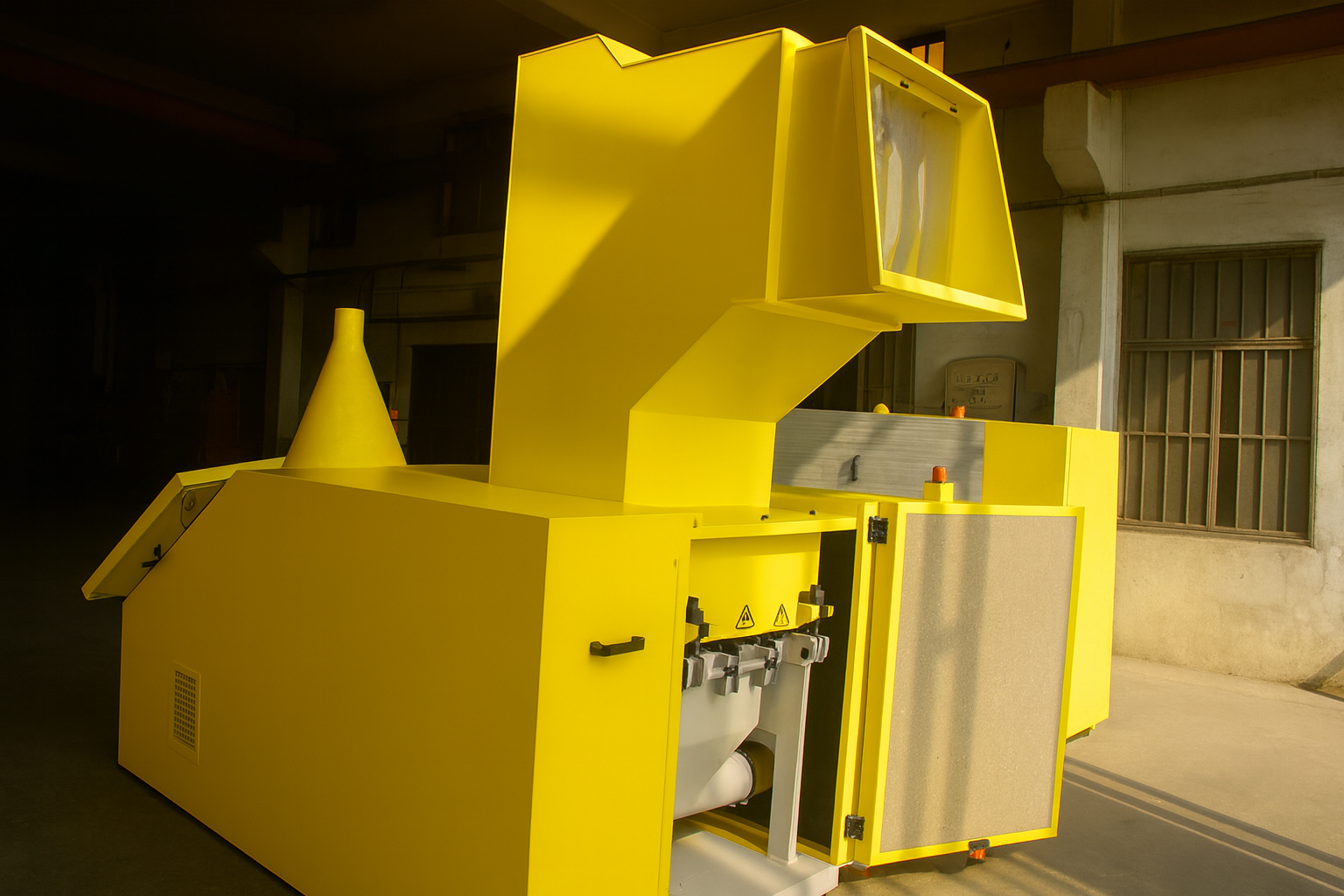

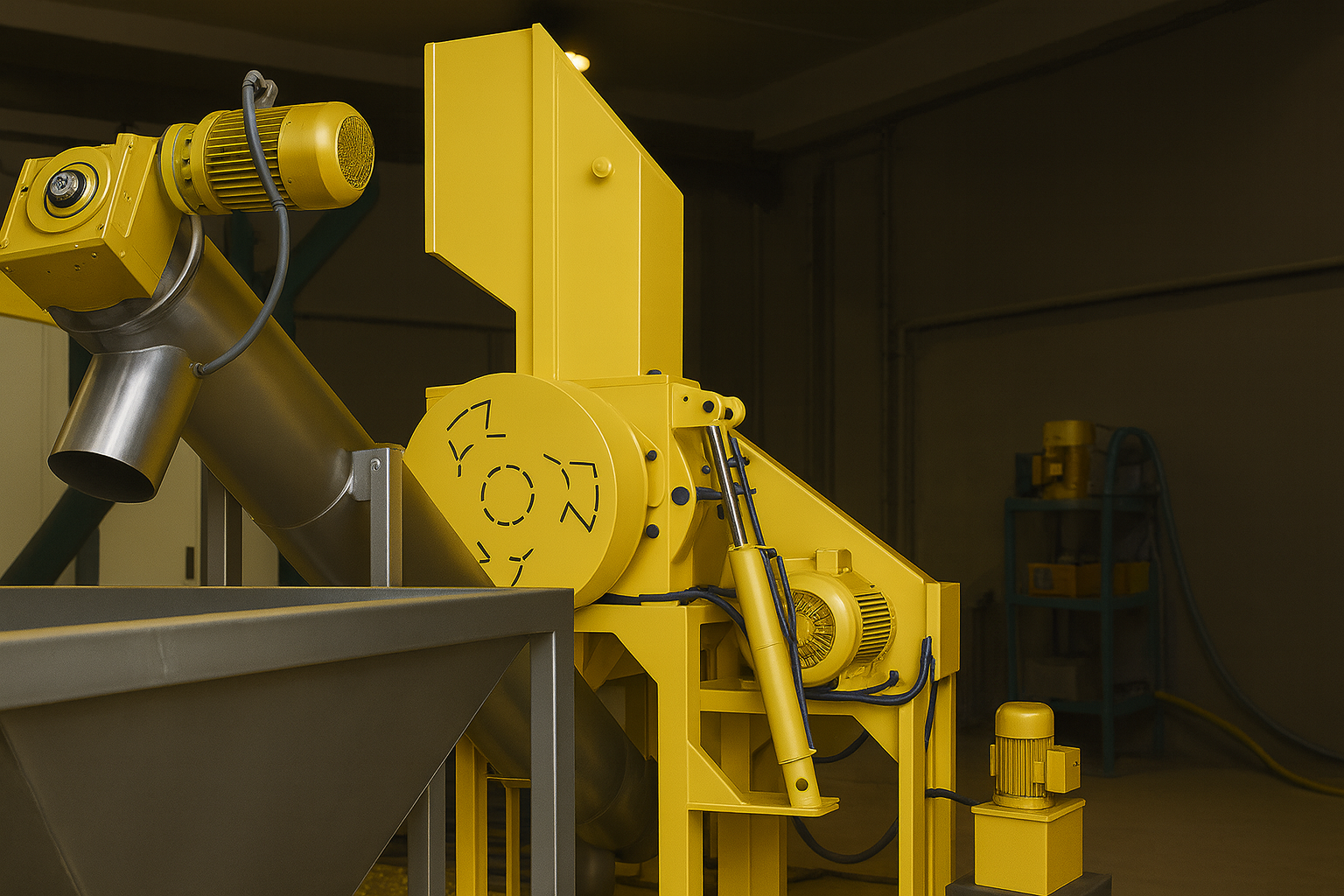

In addition to standard fan and cyclone discharge, the system offers an optional dewatering screw discharge for wet applications. Other configurable features include integrated sound insulation, hydraulic opening and closing of the hopper and upper housing, dust separator, multi-stage rotor blades, and sheet puller systems. These elements support both inline and offline processing.

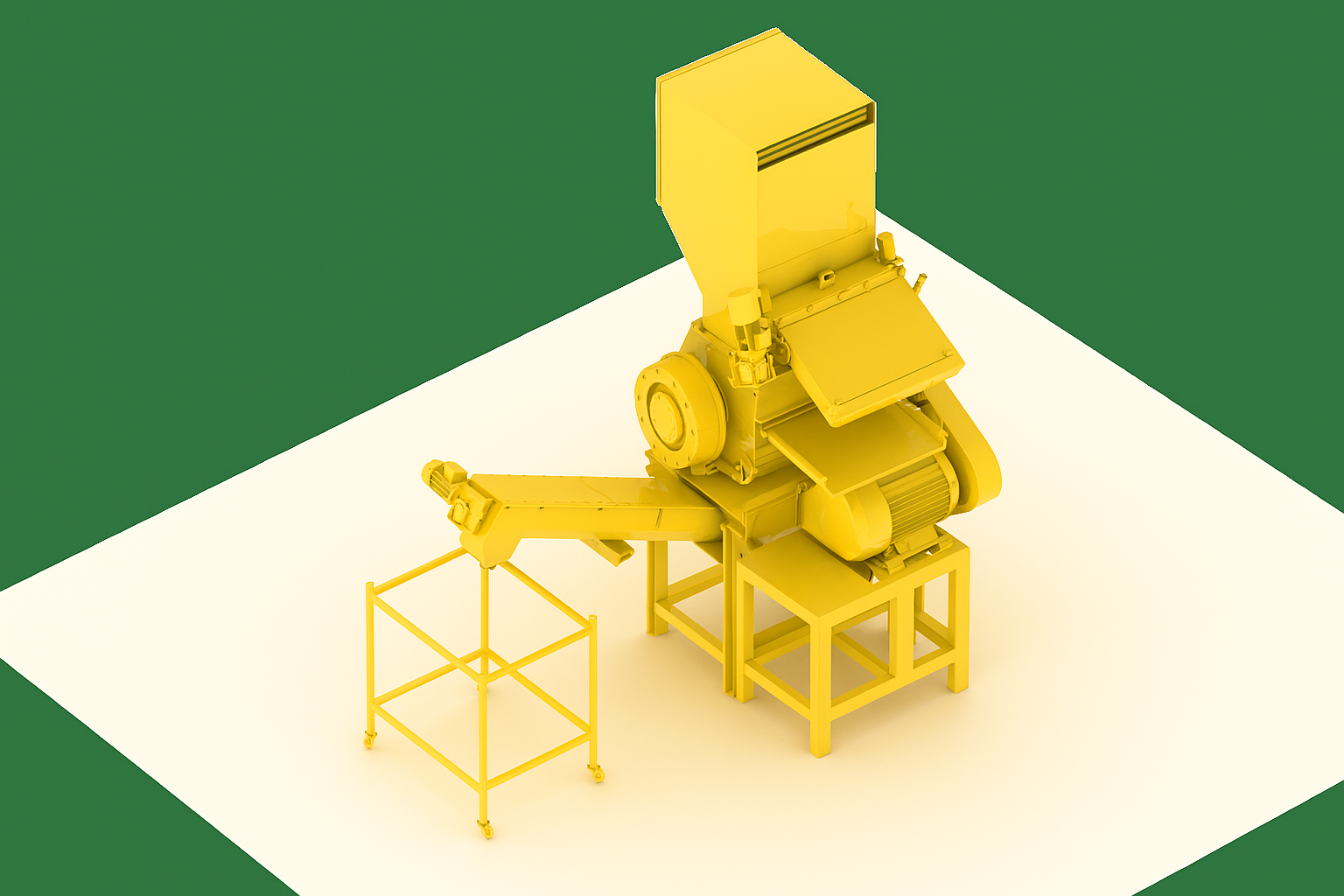

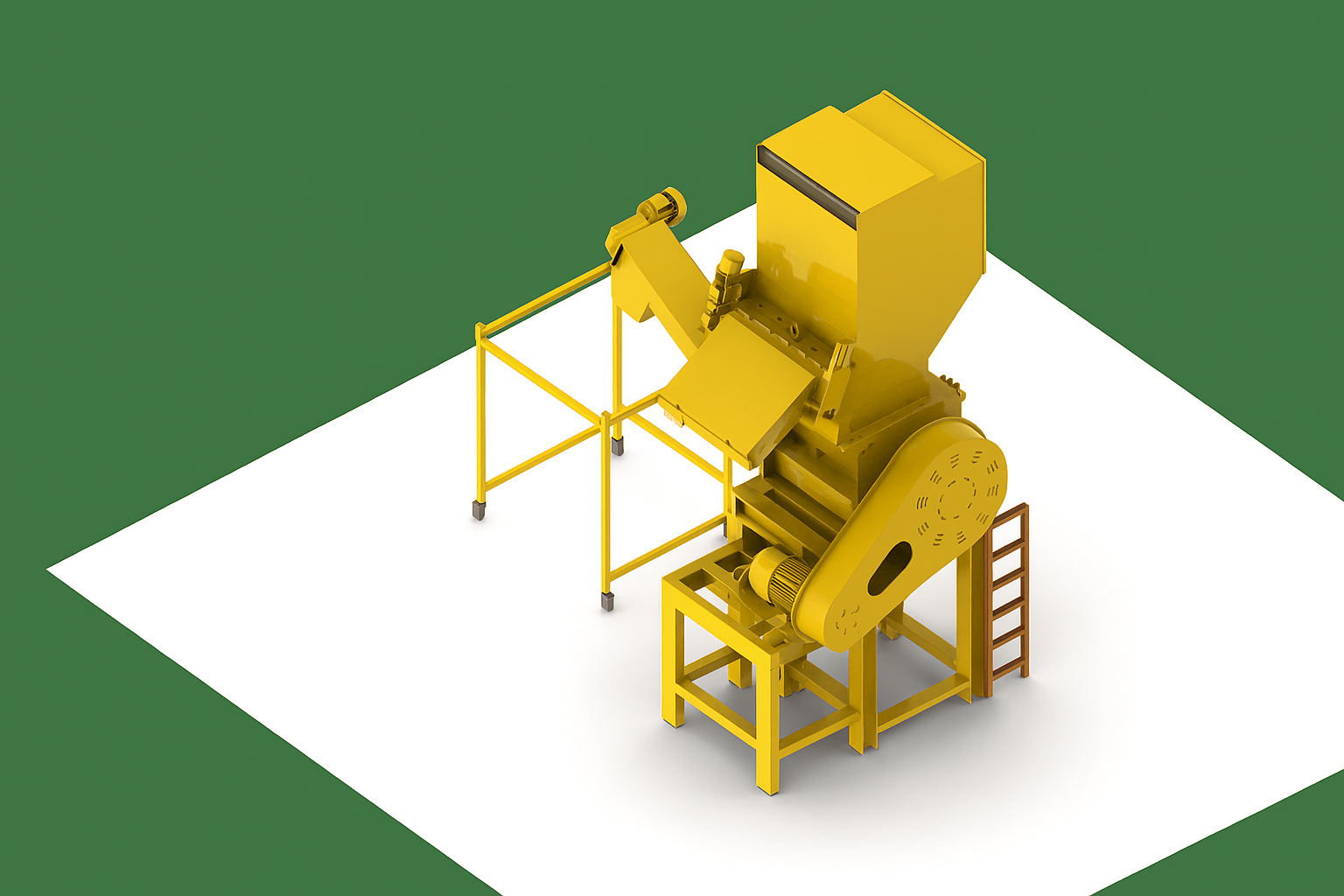

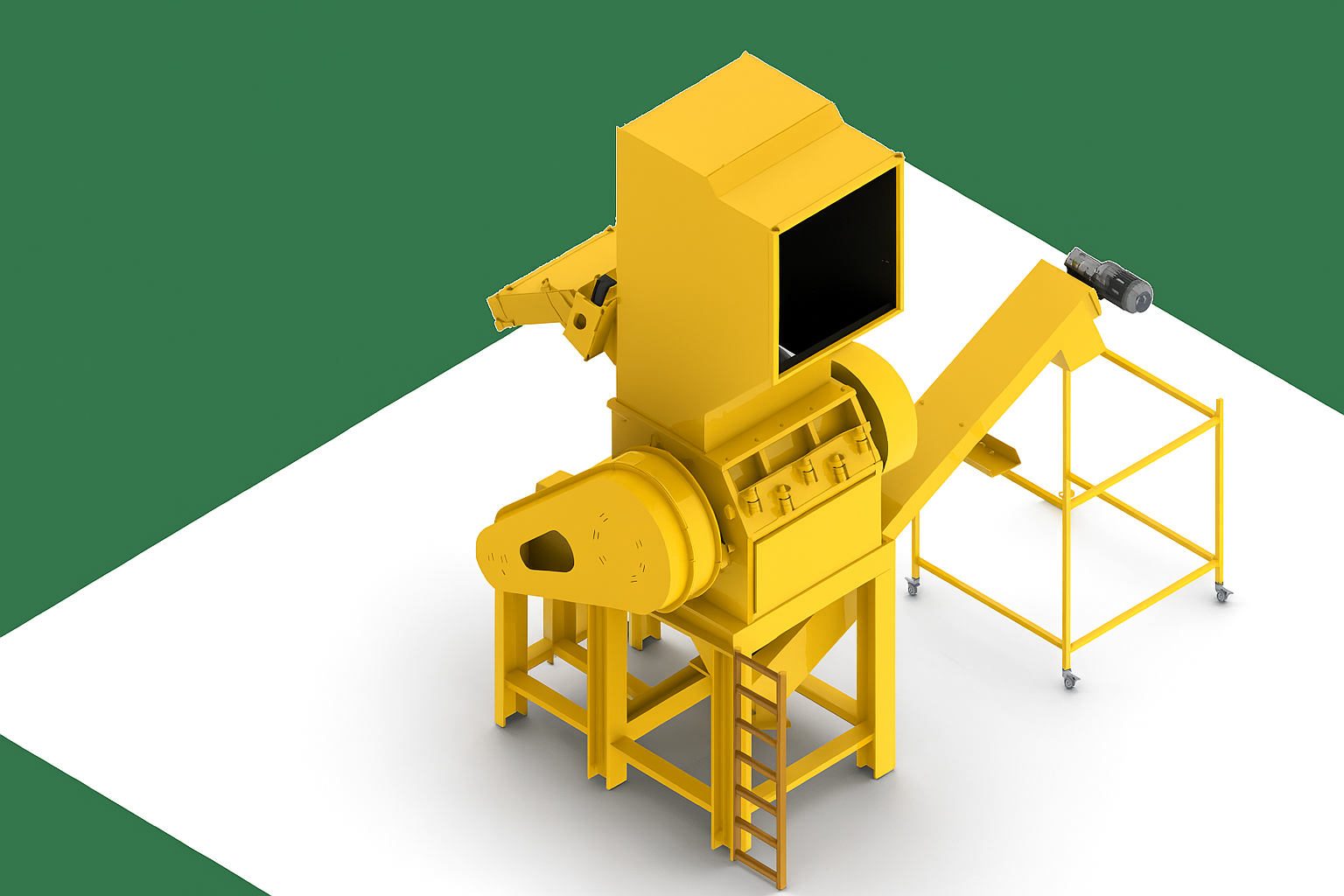

Thanks to its modular component options such as feeding conveyors, the system can be fully customized to meet specific operational needs — delivering maximum flexibility and cost-effective performance in industrial recycling environments.
