Film Squazer Machine
Film Squazer Machine
This model is specially designed. Thanks to its high-torque conical screw system, the moisture content of the material has been reduced to a range of 4% – 8%.
- PREVK-DW 45
- Motor Power: 45 kW
- Screw Diameter: 250 mm
- Capacity: 200 – 350 kg/h
- Output Moisture: 4 – 8 %
- PREVK-DW 55
- Motor Power: 55 kW
- Screw Diameter: 300 mm
- Capacity: 300 – 450 kg/h
- Output Moisture: 4 – 8 %
- PREVK-DW 75
- Motor Power: 75 kW
- Screw Diameter: 300 mm
- Capacity: 400 – 550 kg/h
- Output Moisture: 4 – 8 %
- PREVK-DW 90
- Motor Power: 90 kW
- Screw Diameter: 300 mm
- Capacity: 500 – 650 kg/h
- Output Moisture: 4 – 8 %
- PREVK-DW 110
- Motor Power: 110 kW
- Screw Diameter: 400 mm
- Capacity: 700 – 850 kg/h
- Output Moisture: 4 – 8 %
- PREVK-DW 132
- Motor Power: 132 kW
- Screw Diameter: 400 mm
- Capacity: 900 – 1,200 kg/h
- Output Moisture: 4 – 8 %
- PREVK-DW 160
- Motor Power: 160 kW
- Screw Diameter: 400 mm
- Capacity: 1,200 – 1,500 kg/h
- Output Moisture: 4 – 8 %

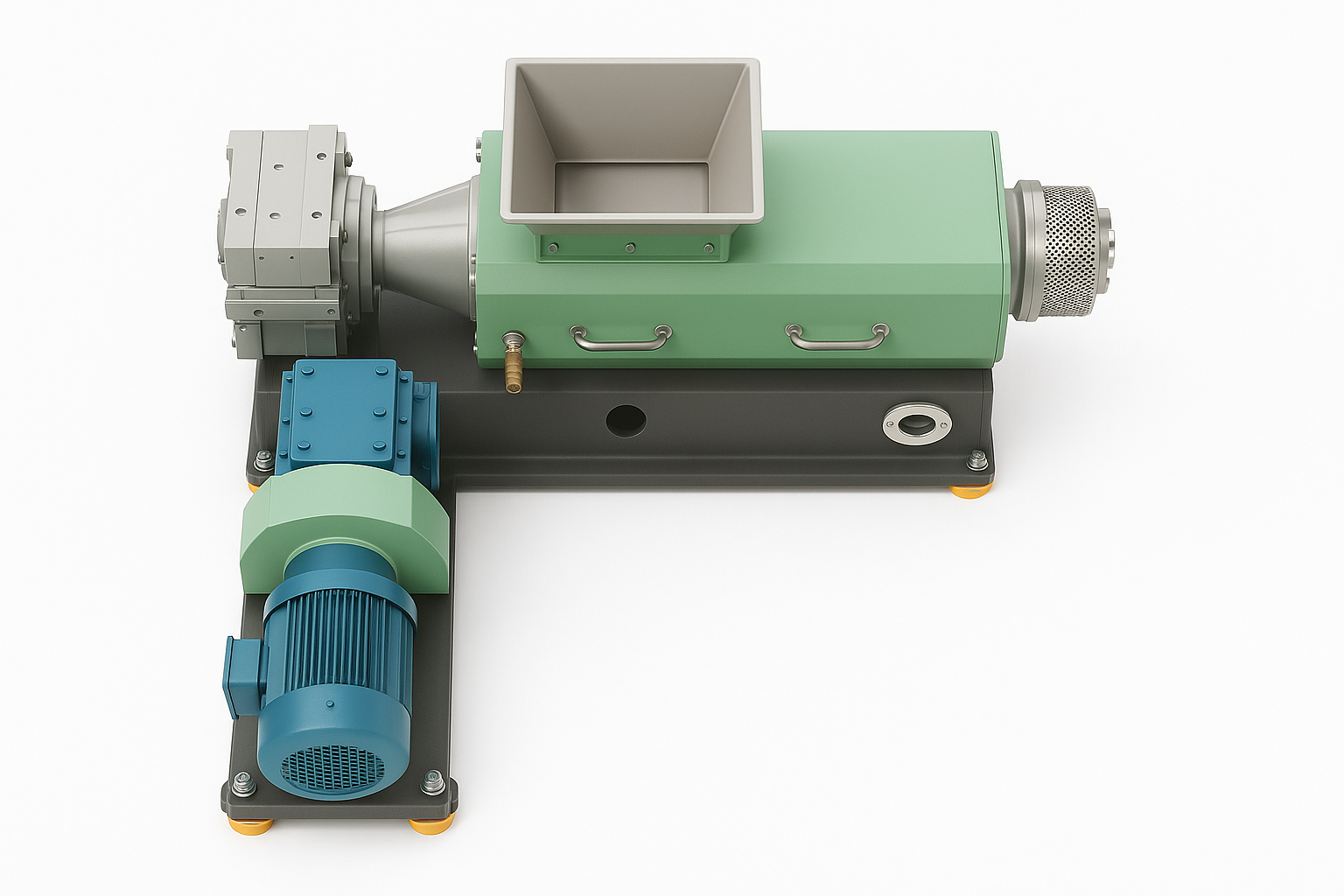

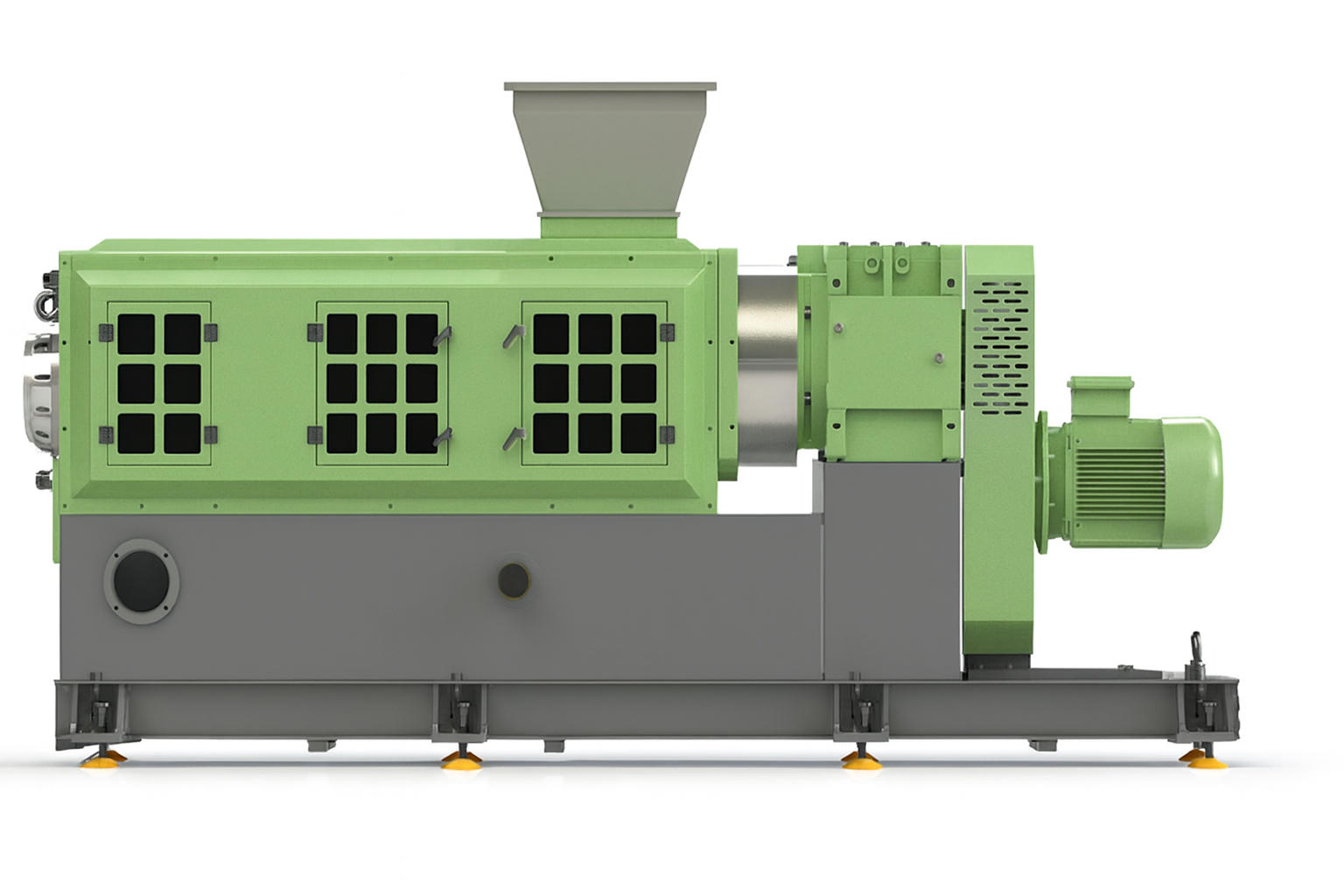

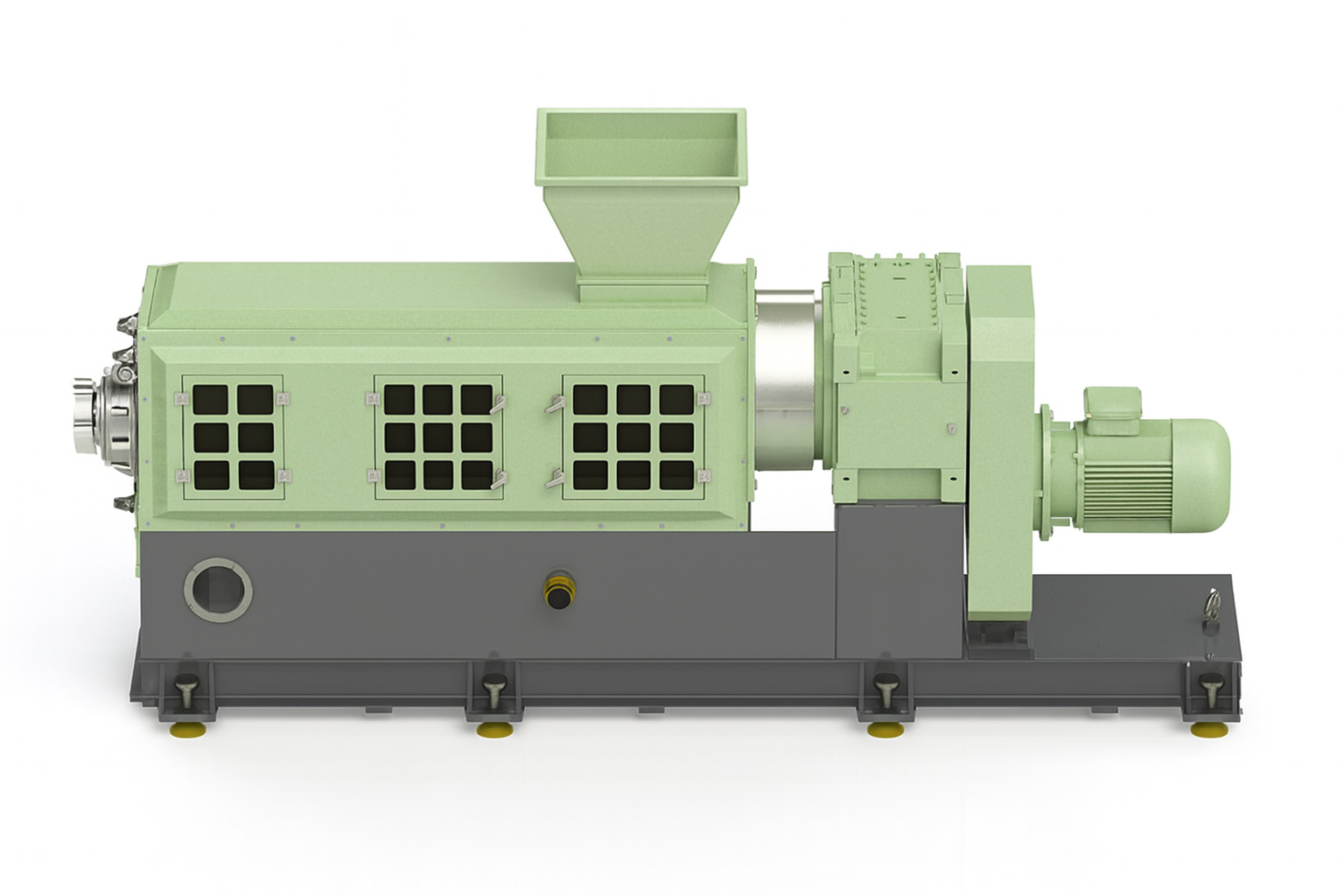

Horizontal Squeezing Machine – Plastic Film Dewatering Solution
Horizontal squeezing machines are efficient equipment used to mechanically remove water from dirty plastic film (nylon) materials after they have been broken down and cleaned in the washing line. The material is squeezed to remove moisture.
These machines, which require low maintenance, do not easily malfunction thanks to their robust structure and do not require constant operator supervision. The front bearing housings are made of durable steel instead of cast iron. Thanks to the specially designed, high-torque conical screw system, the moisture content of the material is reduced to the range of 4% – 8%. This feature minimizes energy consumption in the subsequent drying stage.
The machine body is made of heavy-duty steel and sheet metal and has a robust chassis achieved with gas shielded welding technique. Production capacity can be varied between 150 – 1000 kg/hour according to customer demands.
Thanks to this design, the horizontal squeezing machine both increases efficiency and reduces operating costs in recycling lines.
